NIBCO PFD20003-2-1/2 PXP DI BFLVLV W/FEM PRESS ENDS
NIBCO PFD20003-2-1/2 PXP DI BFLVLV W/FEM PRESS ENDS

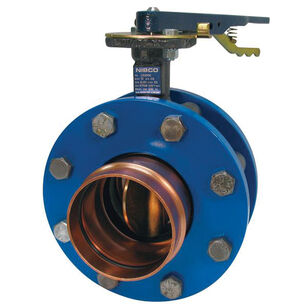

NIBCO® Press System® Butterfly Valve, PFD 2000 Series, 2-1/2 in Nominal, Female Press Connection, 200 psi, Water Media, 5.88 in Top to Inlet Center, Iron Body, Stainless steel Stem, EPDM Seal, Aluminum Bronze Disc, EPDM Softgoods, Quarter Turn Locking Lever Handle Operator, 250 deg F, Material Standard: ASTM A536, A582, B148, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,762.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialIron
Connection TypeFemale Press
Disc MaterialAluminium Bronze
Domestic/ImportDomestic
IndustryPlumbing
Material StandardASTM A536, A582, B148
MediaWater
Nominal Size2-1/2
Operator TypeQuarter Turn Locking Lever Handle
Pressure Rating200
Seal MaterialEPDM
SeriesPFD 2000 Series
Softgoods MaterialEPDM
Stem MaterialStainless Steel
Temperature Rating250
Top to Inlet Center5.88
Warranty5 Year Limited
Shipping Dimensions (L x W x H)15.38" x 24.57" x 8.5"
Additional Information
API 609|MSS SP 25/67|NSF/ANSI 61-8/372
Features & Benefits
- Extended neck Geometric drive Molded-in seat liner
Marketing Information
The NIBCO® lug-type butterfly valve is ideal for commercial and some light industrial process applications, including HVAC and vacuum services, in addition to hot and cold potable water. The ductile iron butterfly valve provides ease of operation with quarter-turn (90 deg) open to close. With the internal stem/disc geometric drive design, there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 in. The unique molded-in EPDM seat liner with aluminum bronze disc is recommended for most water applications. The NIBCO® Press System® is user friendly, quick and easy-to install. When properly crimped a unique "N" witness mark is clearly visible. NIBCO® Press System® applies the proven performance of press technology to NIBCO® valves and fittings - the most specified flow control products in the industry. The NIBCO® Press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO® Press System® valves are backed by a 5 years limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.
