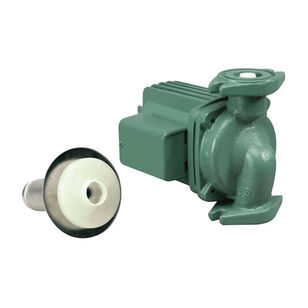

Taco Comfort Solutions® 00 Series 0011-IFC 0011-F4-2IFC High-Efficiency Cartridge Circulator With Integral Flow Check
Taco Comfort Solutions® 00 Series 0011-IFC 0011-F4-2IFC High-Efficiency Cartridge Circulator With Integral Flow Check
Taco Comfort Solutions® High-Efficiency Cartridge Circulator With Integral Flow Check, 00 Series, Model: 0011-IFC, 52 gpm Flow Rate, 31 ft Maximum Head, 115 VAC, 1.76 A, 60 Hz, 150 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/8 hp, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 40 to 230 deg F, Iron, 7-1/2 in L x 5-1/2 in W x 6-1/2 in H, Additional Information: Impedance Protected, Permanent Split Capacitor Motor, Non-Metallic Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$823.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional InformationImpedance Protected, Permanent Split Capacitor Motor, Non-Metallic Impeller Material
Amperage Rating1.76
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeFlanged
Dimensions7-1/2 " L x 5-1/2 " W x 6-1/2 " H
Flow Rate52
Frequency Rating60
HP Rating1/8
IndustryHydronics
MaterialIron
Maximum Head31
Maximum Pressure150
Model0011-IFC
Motor Speed Rating3250
Phase1
Series00 Series
Temperature Rating40 to 230
Voltage Rating115
Additional Information
cULus Listed|NSF 61
Features & Benefits
- Standard high capacity output Compact design Quiet efficient operation Direct drive low power consumption Unique replaceable cartridge design Field serviceable Self-lubricating No mechanical seal Unmatched reliability maintenance-free Prevents gravity flow/reverse flow Eliminates separate in-line flow check Reduces installed cost Improves system performance
Marketing Information
The high velocity series 0011-IFC includes an integral flow check, saving installation costs while improving system performance. The removable, spring loaded IFC replaces a separate in-line flow check and prevents gravity flow when the circulator is not operating.
Taco Comfort Solutions® 00 Series 0011-IFC 0011-F4-2IFC High-Efficiency Cartridge Circulator With Integral Flow Check
BrandTaco Comfort Solutions®
MFG #0011-F4-2IFC
Keller #32542
