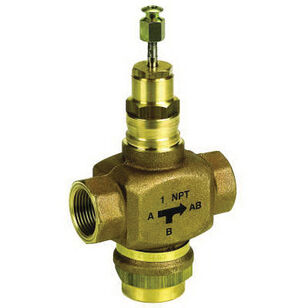

Honeywell V5013N Series V5013N1048/U Mixing Globe Valve, 1/2 in, FNPT, 200 psi, Red Brass
Honeywell V5013N Series V5013N1048/U Mixing Globe Valve, 1/2 in, FNPT, 200 psi, Red Brass
Honeywell Mixing Globe Valve, V5013N Series, 1/2 in Nominal, FNPT Connection, Number of Ports/Ways: 3-Ways, 200 psi, 4.7 Cv Flow Coefficient (Cv), Stainless Steel Stem, PTFE/EPDM Packing, Brass Disc, Brass/Stainless Steel Seat, Red Brass, Hot Water, Cold Water and Glycol Solutions Service, 36 to 248 deg F, 8-5/16 in H x 3-1/4 in W x 1-9/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$268.36Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Connection TypeFNPT
Dimensions8-5/16 " H x 3-1/4 " W x 1-9/16 " D
Disc MaterialBrass
Flow Coefficient (Cv)4.7
IndustryHVAC
MaterialRed Brass
Nominal Size1/2
Number of Ports/Ways3-Ways
Packing MaterialPTFE/EPDM
Pressure Rating200
Seat MaterialBrass/Stainless Steel
SeriesV5013N Series
Service TypeHot Water, Cold Water and Glycol Solutions
Stem MaterialStainless Steel
Temperature Rating36 to 248
Additional Information
ANSI/ASME 150, CRN Number 0C0861.9087YTN/0C0861.123
Features & Benefits
- Red brass body with NPT threaded connections Low seat leakage rating less than 0.05% Spring loaded, self-adjusting packing 50:1 range ability per VDI/VDE 2173 Constant total flow throughout full stem travel Accurate positioning to ensure state of the art temperature control Valves utilize direct mounting, electric or pneumatic valve actuators, Q5001 linkage with modutrol motor or Q5020/Q5022 linkages with direct coupled actuators to operate the valve Not suitable for combustible gases 1-3/8 in bonnet Chilled or hot water with up to 50% glycol controlled fluid and not for use with fuels Linear (B-AB), equal percentage (A-AB) flow characteristic 3/4 in stem travel 0.05% of cu leakage
Marketing Information
The V5013N is a three way threaded globe valve that controls hot water, cold water and glycol solutions (up to 50% concentration), in heating or cooling HVAC applications. The valves direct flow from one or two inlets to a common outlet.
Honeywell V5013N Series V5013N1048/U Mixing Globe Valve, 1/2 in, FNPT, 200 psi, Red Brass
BrandHoneywell
MFG #V5013N1048/U
Keller #325706
