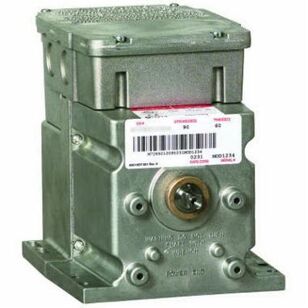

Honeywell Modutrol IV 90 Series M9185D1004/U Damper Actuator, 24 VAC, 30 to 60 s Timing, Die Cast Aluminum
Honeywell Modutrol IV 90 Series M9185D1004/U Damper Actuator, 24 VAC, 30 to 60 s Timing, Die Cast Aluminum
Honeywell Modutrol IV 90 Series Damper Actuator, Model: M9185, 24 VAC, 50/60 Hz Frequency, VA Rating: 20 VA, Electrical Connection: Quick Connect, 30 to 60 s Timing, Die Cast Aluminum, 60 in-lb Torque, -40 to 150 deg F, NEMA 3 Enclosure, Dimensions: 6-7/16 in H x 5-1/2 in W x 8-3/4 in D, Control Signal: Proportional, Auxiliary Switch Control, Foot Mounting, 90 to 160 deg Rotation, Shaft Design: Square, Clockwise Shaft Rotation, 3/8 in Shaft, Adjustable, Asymmetrical Stroke
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,980.96Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Control SignalProportional
Control TypeAuxiliary Switch
Dimensions6-7/16 " H x 5-1/2 " W x 8-3/4 " D
Electrical ConnectionQuick Connect
Enclosure TypeNEMA 3
Frequency Rating50/60
IncludesExternal Auxiliary Switch
MaterialDie Cast Aluminum
ModelM9185
Mounting Type'
Rotation Angle90 to 160
Series90 Series
Shaft DesignSquare
Shaft RotationClockwise
Shaft Size3/8
StrokeAdjustable, Asymmetrical
Temperature Rating-40 to 150
Timing Range30 to 60
Torque Rating60
VA Rating20
Voltage Rating24
Additional Information
CE EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD) Marked|UL File No. E4436, Guide No. XAPX Listed
Features & Benefits
- Oil immersed motor and gear train for reliable performance and long life Integral junction box provides NEMA 3 weather protection Motor and circuitry operate from 24 VAC Quick-connect terminals standard Adapter bracket for matching shaft height of older motors standard with TRADELINE motors Nominal timing of 30 s for 90 deg stroke and 60 s for 160 deg stroke standard Integral auxiliary switches available factory mounted or can be field added to TRADELINE models Integral spring returns motor shaft to normal position (fully open or fully closed, depending on model) upon power interruption Field addable interface modules can be mounted in the junction box to upgrade the motor to Series 70 (electronic) control TRADELINE spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications
Documents
Honeywell Modutrol IV 90 Series M9185D1004/U Damper Actuator, 24 VAC, 30 to 60 s Timing, Die Cast Aluminum
BrandHoneywell
MFG #M9185D1004/U
Keller #330390
