ASTM A395 Body|ASTM A582 Type 416 Stem|MSS SP-25|MSS SP-67|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Splined Drive Operating Mechanism - Bare Stem, Infinite Position Plated and Lock, Lever Lock, Manual Gear Operator Maximum Temperature Rating of 200 deg F EPDM Disc and 180 deg F Buna Disc Extended Neck for up to 2 in of Insulation Valve pressure rating 300 psi wwp Not recommended for steam service

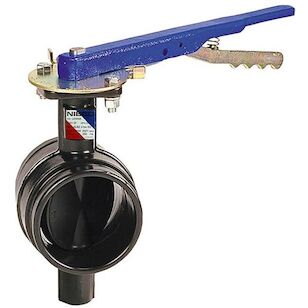

The NIBCO® grooved end type butterfly valve provides Bubble tight shut-off at 300 psi. Grooved ends are compatible with IPS pipe. These valves are ideal in grooved steel pipe systems for commercial and some light industrial process applications, including HVAC, in addition to hot and cold potable water. The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 deg) open to close. The valve features an EPDM encapsulated ductile iron disc. The internal stem/disc Splined drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 in. Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO® 5-year 125 percent limited warranty.
