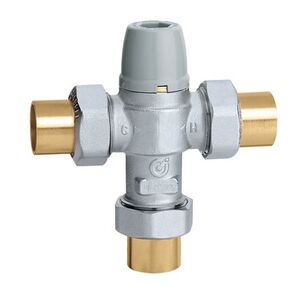

Caleffi 521359A Thermostatic Mixing Valve, 3/4 in, Sweat, 0.5 to 9 gpm, 150 psi, Brass, Contains Lead
Caleffi 521359A Thermostatic Mixing Valve, 3/4 in, Sweat, 0.5 to 9 gpm, 150 psi, Brass, Contains Lead
Caleffi Thermostatic Mixing Valve, 3/4 in Nominal, Sweat Connection, Number of Ports/Ways: 3, 0.5 to 9 gpm Flow Rate, 150 psi, 2 Cv Flow Coefficient (Cv), PPO Seat, EPDM Seal, Brass, Water Media, 1-15/16 in Top to Inlet Center, Check Valve, Contains Lead, 85 to 120 deg F, 4-13/16 in L x 5-3/4 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$174.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCaleffi
Connection TypeSweat
Dimensions4-13/16 " L x 5-3/4 " W
Flow Coefficient (Cv)2
Flow Rate0.5 to 9
MaterialBrass
MediaWater
Nominal Size3/4
Number of Ports/Ways3
Pressure Rating150
Seal MaterialEPDM
Seat MaterialPPO
Temperature Rating85 to 120
Top to Inlet Center1-15/16
Valve TypeCheck
Additional Information
ANSI Specified|ASME A112.1070 Specified|ASSE 1070 Certified|California Health and Safety Code 116875|CSA B125.70/B125.3 Certified|DZR Certified|ICC-ES File PMG-1358 Approved|ICC-ES File PMG-1360 Approved|IPC Certified|IRC Listed|NPC Listed|NSF 372 Certified|Reduction of Lead in Drinking Water Act S.3874|UPC Listed
Features & Benefits
- Adjustable thermostatic and pressure balanced mixing valve, 5213 Series, for residential point-of-use (scald protection) domestic water systems with locking set point, certified low-lead brass, 1/2 to 1 in, sweat and NPT union Anti-scale materials prevent scaling on internal sliding parts, that reduces jamming caused by lime deposits, assuring reliable, constant temperature setpoint and long, trouble-free operating life
Documents
Marketing Information
Adjustable thermostatic and pressure balanced mixing valve for point-of-use where protection from the danger of scalding caused by hot water is required. With locking set point. Complete with check valves on both hot and cold inlets.
Caleffi 521359A Thermostatic Mixing Valve, 3/4 in, Sweat, 0.5 to 9 gpm, 150 psi, Brass, Contains Lead
BrandCaleffi
MFG #521359A
Keller #333706
My Part ##
Last Ordered#
$174.00Â /Â ea
