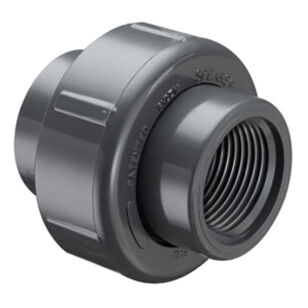

Spears® 2000 Series 8098-020 Union, 2 in FIPT x 2 in FIPT, PVC, Gray, SCH 80
Spears® 2000 Series 8098-020 Union, 2 in FIPT x 2 in FIPT, PVC, Gray, SCH 80
Spears® Union, Series: 2000 Series, Union Fitting, 2 in Connection Size 1, FIPT Connection Type 1, 2 in Connection Size 2, FIPT Connection Type 2, FPT|FPT Connection, PVC, Molded PVC Material Construction, Gray, SCH 80 Schedule Rating, 235 psi, 3 in OD x 3-3/16 in L, 73 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$209.12 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSpears®
ColorGray
Connection Size 12
Connection Size 22
Connection TypeFPT|FPT
Connection Type 1FIPT
Connection Type 2FIPT
Dimensions3 " OD x 3-3/16 " L
Fitting TypeUnion
IndustryPlumbing
MaterialPVC
Material ConstructionMolded PVC
Pressure Rating235
Schedule RatingSCH 80
Series2000 Series
Temperature Rating73
WarrantyLimited Lifetime
Additional Information
ANSI B16.5|ASTM D1784/D1785/D2467|LPCB Certified|NSF Certified|UL 94 V-0 Flammability Rating
Features & Benefits
- Spears® comprehensive line of PVC injection molded fittings and extruded pipe offers a variety of configurations in sizes 1/4 in through 14 in Spears® exclusive CL150 flanges are produced in sizes 1/2 to 18 in with ANSI B16.5 bolt patterns, plus numerous unions, saddles, transition and specialty fittings in a variety of sizes Unlike metal, PVC fittings and pipe never rust, scale or pit and will provide many years of maintenance-free service and extended system life PVC thermoplastic can handle fluids at service temperatures up to 140 deg F (60 deg C), allowing a wide range of process applications, including corrosive fluids Substantially lower material costs than steel alloys or lined steel, combined with lightweight and ease of installation, can reduce installation costs by as much as 60% over conventional metal systems Smooth interior walls result in lower pressure loss and higher volume than conventional metal fittings
Documents
Marketing Information
Spears® SCH 80 PVC product designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure obtaining the very best PVC fittings available.
Spears® 2000 Series 8098-020 Union, 2 in FIPT x 2 in FIPT, PVC, Gray, SCH 80
BrandSpears®
MFG #8098-020
Keller #336633
My Part ##
Last Ordered#
$209.12 / ea
