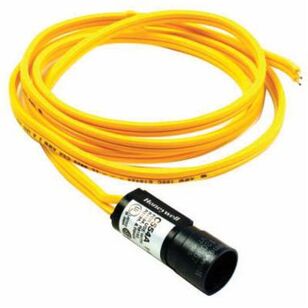

Honeywell C554A1794 Cadmium Sulfide Flame Detector
Honeywell C554A1794 Cadmium Sulfide Flame Detector
Honeywell Cadmium Sulfide Flame Detector, 12 mA, Type R Bracket Mounting, 140 deg F, 1 in L x 1/2 in W x 1-7/8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$63.08 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Amperage Rating12
ApplicationFor oil fired burners applications
Dimensions1 " L x 1/2 " W x 1-7/8 " H
IncludesType E Mounting Bracket and Fuel Line Adapter
Mounting TypeType R Bracket
Temperature Rating140
Additional Information
CSA file Number LR95329-1 Certified, guide MCCZ, NEC Class 1, section 1, UL file Number MP268 Listed, volume 39
Features & Benefits
- With 60 in lead Photoconductive flame sensing device for sequencing oil burner systems On flame failure, the light sensitive cadmium sulfide cell, in conjunction with flame sensing circuitry, causes the Protectorelay® control to shutdown the main oil burner Glass-to-metal hermetic seal in plug-in cell prevents deterioration by humidity, soot or oil fumes Replaceable 130367 cad cell Used with R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184, R7284 Minimum sensitivity at 2 ft candles
Documents
Honeywell C554A1794 Cadmium Sulfide Flame Detector
BrandHoneywell
MFG #C554A1794/U
Keller #342453
