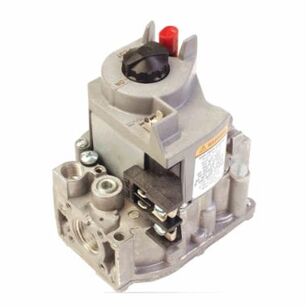

resideo VR8200 Series VR8200A2132/U Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal
resideo VR8200 Series VR8200A2132/U Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal
resideo Gas Valve, VR8200 Series, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal Capacity, Natural Gas, Standing Pilot Ignition, 0.5 psi, 0 to 175 deg F, 24 V, 60 Hz, Male Quick-Connect Electrical Connection, 3-1/4 in Overall Length, 4-1/8 in Overall Width, 5-3/16 in Overall Height, Additional Information: Standard Opening
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$353.91Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional InformationStandard Opening
Electrical ConnectionMale Quick-Connect
End TypeNPT
Frequency Rating60
Gas TypeNatural Gas
Ignition TypeStanding Pilot
IndustryHVAC
Inlet Size1/2
Nominal Capacity20000 to 200000
Outlet Size1/2
Overall Height5-3/16
Overall Length3-1/4
Overall Width4-1/8
Pressure Rating0.5
SeriesVR8200 Series
Temperature Rating0 to 175
Voltage Rating24
Additional Information
Australian Gas Association 4752|CSA 112395|UL MCCZ2.MH5323
Features & Benefits
- Compact size Provides two-automatic valves Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends Diaphragm operated second automatic valve opens under control of the regulator, closes if gas or power supply is interrupted Meets codes requiring dual safety shut-off All adjustments, wiring connections and pilot outlet are accessible from top of control Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure Compatible with ECO connector Lite-rite (off-pilot-on) lighting sequence
Marketing Information
Combination gas control for use in 24 V gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
resideo VR8200 Series VR8200A2132/U Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal
BrandHoneywell
MFG #VR8200A2132/U
Keller #342454
