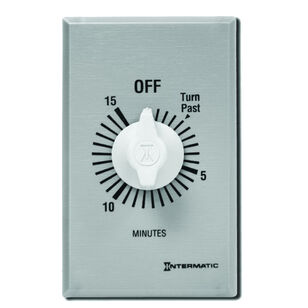

Intermatic® FF Series FF15MC Spring Wound Countdown Timer with Wall Plate, 125 - 277 VAC, 40 A, 50/60 Hz, 15 min Timing
Intermatic® FF Series FF15MC Spring Wound Countdown Timer with Wall Plate, 125 - 277 VAC, 40 A, 50/60 Hz, 15 min Timing
Intermatic® Spring Wound Countdown Timer, FF Series, 125 - 277 VAC, 40 A, 50/60 Hz, 1 hp, 2 hp Power, 1 -Pole, Contact Configuration: SPST, Timing Range: 15 min, Up-Front Terminal Connection, Up-Front Terminal, Countdown, Silver, 40 to 120 deg F, 4-1/8 in H x 1-3/4 in W x 1-1/4 in D, Analog/Mechanical Mechanism, 1-Wire, For Use With Incandescent, Fluorescent, CFL, LED
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$32.95 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Additional InformationAnalog/Mechanical Mechanism, 1-Wire, For Use With Incandescent, Fluorescent, CFL, LED
Amperage Rating40
ApplicationFor air movement and ventilation, indoor lighting control, motor control, outdoor lighting control, commercial and residential use
ColorSilver
Connection TypeUp-Front Terminal
Contact ConfigurationSPST
Dimensions4-1/8 " H x 1-3/4 " W x 1-1/4 " D
Frequency Rating50/60
ItemApplicationCompatibilities_enIncandescent, Fluorescent, CFL, LED
ItemColor_enSilver
ItemCountdownTime_en15 min
ItemHoldModeIncludedCVL_enNo
ItemIncludesWallPlateCVL_enYes
ItemInputVoltageRanges_en125-277 VAC, 50/60 Hz
ItemInWallWiringConfigurations_enSingle
ItemMarket_enCommercial, Residential
ItemMechanismType_enAnalog/Mechanical
ItemMotorLoadRatingsRanges_en1 HP, 125 VAC, 2 HP, 250 VAC
ItemNeutralConnectionRequiredCVL_enNo
ItemOperatingTemperatureMaxC49
ItemOperatingTemperatureMaxF120
ItemOperatingTemperatureMinC4
ItemOperatingTemperatureMinF40
ItemOperationMode_enCountdown
ItemProductDepthIn1.25
ItemProductDepthMm31.8
ItemProductHeightIn4.125
ItemProductHeightMm104.8
ItemProductWidthIn1.75
ItemProductWidthMm44.5
ItemResistiveHeater_en20 A, 2500 W, 125 VAC, 10 A, 2500 W, 250 VAC, 10 A, 2770 W, 277 VAC
ItemSwitchType_enSPST
ItemTungstenIncandescent_en7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W
ItemTungstenIncandescentRanges_en7 A, 125 VAC, 50/60 Hz, 875 W
ItemWallPlateConfiguration_enSingle-Gang, Multi-Gang
Number of Poles1
Operating ModesCountdown
Power Rating1 hp, 2 hp
SeriesFF Series
Temperature Rating40 to 120
Terminal TypeUp-Front
Timing Range15
Voltage Rating125 - 277
Warranty1 Year Limited
Shipping Dimensions (L x W x H)2.5" x 4" x 7"
Additional Information
cCSAus Certified
Features & Benefits
- Breaks circuit at end of timing cycle Replaces any standard or decorator single-gang wall switch Automatically limits on time for energy consuming loads Quick and easy installation Time saving up front terminal connection with teeter-type terminals Brushed metal look switch plate meets NEC requirements (plate is included)
Documents
Marketing Information
The FF Series commercial countdown timers are designed to replace any standard wall switch and do not require electricity to operate. These energy efficient switches automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements.
