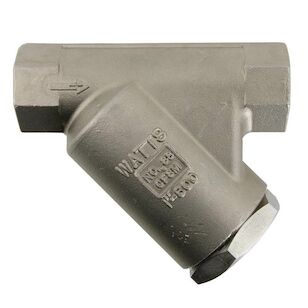

1 1/4 IN SS Wye Pattern Strainer Thread Tapped Retainer Cap
1 1/4 IN SS Wye Pattern Strainer Thread Tapped Retainer Cap
1 1/4 IN SS Wye Pattern Strainer Thread Tapped Retainer Cap
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,868.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Blowdown Outlet Connection TypeFemale Threaded
Blowdown Outlet Size0.75''
Body PatternWye
Gasket MaterialGraphite
IndustryPlumbing
Inlet Connection Size1-1/4"
Inlet Connection Size Metric32 mm
Inlet Connection TypeFemale Threaded
Inlet Thread TypeNPT
MaterialStainless Steel
Outlet Connection Size1-1/4"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Retainer Cover MaterialStainless Steel
Retainer Cover TypeTapped Without Closure Plug
Screen MaterialStainless Steel
Screen Size1/16''
Series88S
StrainerYes
Strainer TypeWye
Weight6.8 lbs.
Wog Rating1440 psi
Features & Benefits
- Wye pattern
- Stainless steel body
- Threaded connections
- Stainless steel screen
Documents
Marketing Information
This stainless steel wye pattern strainer, 1 1/4 inch Watts Model 88S, is used in liquid or steam applications. The strainer is designed to ensure complete protection to mechanical equipment from the injurious effects of dirt, scale, welding particles or other foreign objects. Built for long service in corrosive, high pressure and high temperature applications. The bottom threaded cap is mated to the body with straight threads and is sealed off from contact with the media flowing through the strainer by a cap gasket. This prevents corrosion of the threads, thus enabling easy servicing and avoids potential deterioration of the threads after an extended period.
1 1/4 IN SS Wye Pattern Strainer Thread Tapped Retainer Cap
BrandWATTS®
MFG #0701010
Keller #344610
