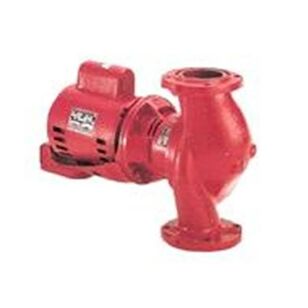

Bell & Gossett PD Series PD37T 105101 Circulator Pump, 208-230/460 VAC, 2.45 to 2.4/1.2 A, 60 Hz, 125 psi Max Pressure
Bell & Gossett PD Series PD37T 105101 Circulator Pump, 208-230/460 VAC, 2.45 to 2.4/1.2 A, 60 Hz, 125 psi Max Pressure
Bell & Gossett Circulator Pump, PD Series, Model: PD37T, 30 ft Maximum Head, 208-230/460 VAC, 2.45 to 2.4/1.2 A, 60 Hz, 125 psi Maximum Pressure, 1750 rpm Motor Speed Rating, 3/4 hp, 3 in Connection, NPT Flanged Connection, 3 ph Phase, In-Line Mounting, 225 deg F, Carbon Steel/Iron, 20-1/4 in W, Additional Information: Plastic Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,240.09Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBell & Gossett
Additional InformationPlastic Impeller Material
Amperage Rating2.45 to 2.4/1.2
Connection Size3
Connection TypeNPT Flanged
Dimensions20-1/4 " W
Frequency Rating60
HP Rating3/4
MaterialCarbon Steel/Iron
Maximum Head30
Maximum Pressure125
ModelPD37T
Motor Speed Rating1750
Mounting Type"-Line
Phase3
SeriesPD Series
Temperature Rating225
Voltage Rating208-230/460
Additional Information
CSA Certified|UL Listed
Features & Benefits
- Series PD cast iron pumps are dependable, in-line booster pumps intended to pump water through closed loop systems for heating and cooling The Series PD is designed for applications that require increased flow and head pressures This innovative design provides for easy field service as the bearings, shaft and seal are all housed within the bearing assembly That assembly can then be easily repaired or entirely replaced without disturbing the other components of your pump The Series PD resilient motor mounting is another feature unique to Bell & Gossett The mounting, combined with spring-loaded couplers, means your pump will run quietly and efficiently The Series PD features a plastic impeller Carbon on ceramic mechanical seal Heat treated carbon steel shaft The Series PD features a three-piece design, which includes a motor, bearing assembly and volute
Bell & Gossett PD Series PD37T 105101 Circulator Pump, 208-230/460 VAC, 2.45 to 2.4/1.2 A, 60 Hz, 125 psi Max Pressure
BrandBell & Gossett
MFG #105101
Keller #346912
My Part ##
Last Ordered#
$5,240.09Â /Â ea
