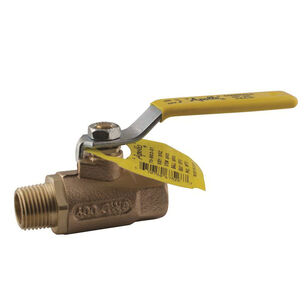

Apollo® 70-800 Series 70-802-01 Ball Valve, 3/8 in, MNPT x FNPT, Bronze, 150 psi WSP, 600 psi CWP
Apollo® 70-800 Series 70-802-01 Ball Valve, 3/8 in, MNPT x FNPT, Bronze, 150 psi WSP, 600 psi CWP
Apollo® Ball Valve, 70-800 Series, 3/8 in Nominal, MNPT x FNPT Connection, Standard Port, 2-Piece, Standard, 150 psi WSP, 600 psi CWP, Gas, Steam, Water Media, 0.37 in Orifice, 2-1/2 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B584 Grade C84400, ASTM B16, Bronze Body, RPTFE Seat, Brass Stem, PTFE Seal, Brass/PTFE/RPTFE Trim, RPTFE Packing, Steel/Vinyl Handle, Brass Ball, PTFE/RPTFE Softgoods, Contains Lead, Yellow, 425 deg F, 2-1/2 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$49.18 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationFor heating, cooling, steam and vacuum applications
Ball MaterialBrass
Body MaterialBronze
ColorYellow
Configuration2-Piece, Standard
Connection TypeMNPT x FNPT
Dimensions2-1/2 " L
Domestic/ImportDomestic
Handle MaterialSteel/Vinyl
Inlet to Outlet Length2-1/2
Material StandardASTM B584 Grade C84400, ASTM B16
MediaGas, Steam, Water
Nominal Size3/8
Operator TypeLever Handle
Orifice Size0.37
Packing MaterialRPTFE
Port TypeStandard
Pressure Rating150 psi WSP, 600 psi CWP
Seal MaterialPTFE
Seat MaterialRPTFE
Series70-800 Series
Softgoods MaterialPTFE/RPTFE
Stem MaterialBrass
Temperature Rating425
Top to Inlet Center1-3/4
Trim MaterialBrass/PTFE/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)2.75" x 1.25" x 1.75"
Additional Information
CRN OC10908.5C|Federal Specification WW-V-35C, Type II|MSS-SP-110
Features & Benefits
- Adjustable packing gland Blowout-proof stem design RPTFE seats and stuffing box ring Designed, manufactured and 100% factory tested in the USA
Documents
Marketing Information
The Apollo® 70-800 Series is a standard port ball valve that eliminates the need for an extra nipple when connecting to female connections.
Apollo® 70-800 Series 70-802-01 Ball Valve, 3/8 in, MNPT x FNPT, Bronze, 150 psi WSP, 600 psi CWP
BrandApollo®
MFG #7080201
Keller #347413
My Part ##
Last Ordered#
$49.18 / ea
