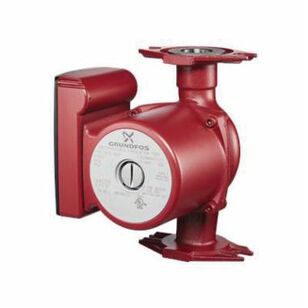

Grundfos Small Stator UP Series UP 15-29 SU 59896775 Circulator Pump, 0 to 22 gpm, 87 W, 115 V, 0.75 A, 60 Hz
Grundfos Small Stator UP Series UP 15-29 SU 59896775 Circulator Pump, 0 to 22 gpm, 87 W, 115 V, 0.75 A, 60 Hz
Grundfos Circulator Pump, Small Stator UP Series, Model: UP 15-29 SU, 0 to 22 gpm Flow Rate, 10 ft Maximum Head, 87 W, 115 V, 0.75 A, 60 Hz, 145 psi Maximum Pressure, 0.121 hp, 1-1/4 in Connection, NPSM x Union Connection, 1 ph Phase, 2 Poles, 104 deg F Ambient, 230 deg F Liquid, Stainless Steel, 5-7/8 in H x 5-1/2 in W x 3-7/16 in D, Additional Information: Composite/PES Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$402.00Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandGrundfos
Additional InformationComposite/PES Impeller Material
Amperage Rating0.75
Connection Size1-1/4
Connection TypeNPSM x Union
Dimensions5-7/8 " H x 5-1/2 " W x 3-7/16 " D
Flow Rate0 to 22
Frequency Rating60
HP Rating0.121
MaterialStainless Steel
Maximum Head10
Maximum Pressure145
ModelUP 15-29 SU
Number of Poles2
Phase1
Power Rating87
SeriesSmall Stator UP Series
Temperature Rating104 deg F Ambient, 230 deg F Liquid
Voltage Rating115
Additional Information
CSA Certified|cULus Listed|UL Listed
Features & Benefits
- Ceramic shaft and radial bearings Carbon axial bearing Stainless steel rotor can and bearing plate Corrosion-resistant impeller Stainless steel pump housing
Grundfos Small Stator UP Series UP 15-29 SU 59896775 Circulator Pump, 0 to 22 gpm, 87 W, 115 V, 0.75 A, 60 Hz
BrandGrundfos
MFG #59896775
Keller #352493
My Part ##
Last Ordered#
$402.00Â /Â ea
