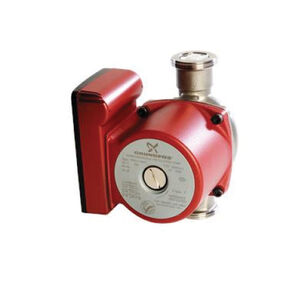

Grundfos Small Stator UP Series UPS 15-55 SFC 59896773 Circulator Pump, 5.7 cu-m/hr, 87 W, 115 V, 0.53/0.69/0.75 A
Grundfos Small Stator UP Series UPS 15-55 SFC 59896773 Circulator Pump, 5.7 cu-m/hr, 87 W, 115 V, 0.53/0.69/0.75 A
Grundfos Circulator Pump, Small Stator UP Series, Model: UPS 15-55 SFC, 5.7 cu-m/hr Flow Rate, 5.5 m Maximum Head, 87 W, 115 V, 0.53/0.69/0.75 A, 60 Hz, 10 bar Maximum Pressure, 3/4 in, 1 in Connection, Flanged Connection, 1 ph Phase, 2 Poles, 40 deg C, Stainless Steel, 6-8/16 in H x 5-8/16 in W, Additional Information: 3-Speed, 2-Bolt Flange Pipe Connection, 2 to 110 deg C Liquid Temperature, 983.2 kg/cu-m Density, 10 uF Capacitance, IEC 85 F Insulation Class
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$590.00Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional Information3-Speed, 2-Bolt Flange Pipe Connection, 2 to 110 deg C Liquid Temperature, 983.2 kg/cu-m Density, 10 uF Capacitance, IEC 85 F Insulation Class
Amperage Rating0.53/0.69/0.75
Connection Size3/4 ", 1 "
Connection TypeFlanged
Dimensions6-8/16 " H x 5-8/16 " W
Flow Rate5.7
Frequency Rating60
IndustryPlumbing
MaterialStainless Steel
Maximum Head5.5
Maximum Pressure10
ModelUPS 15-55 SFC
Number of Poles2
Phase1
Power Rating87
SeriesSmall Stator UP Series
Temperature Rating40
Voltage Rating115
Additional Information
CSA Certified|UL Listed
Features & Benefits
- Ceramic shaft and radial bearings Carbon axial bearing Stainless steel rotor can and bearing plate Corrosion-resistant impeller Stainless steel pump housing
Documents
Marketing Information
Grundfos UPS N circulator pumps have a corrosion-free stainless steel pump housing and are recommended for domestic hot water recirculation and underfloor heating systems. UPS N can be connected to an on/off time switch to limit pump operation to periods when hot water is usually required. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
Grundfos Small Stator UP Series UPS 15-55 SFC 59896773 Circulator Pump, 5.7 cu-m/hr, 87 W, 115 V, 0.53/0.69/0.75 A
BrandGrundfos
MFG #59896773
Keller #352500
