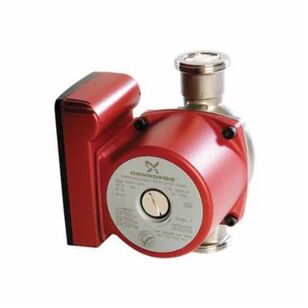

Grundfos UPS Series UPS 15-55 SUC 59896781 Circulator Pump, 25.1 gpm, 87 W, 115 V, 0.31/0.66/0.69 A, 60 Hz
Grundfos UPS Series UPS 15-55 SUC 59896781 Circulator Pump, 25.1 gpm, 87 W, 115 V, 0.31/0.66/0.69 A, 60 Hz
Grundfos Circulator Pump, Series: UPS Series, Model: UPS 15-55 SUC, 25.1 gpm Flow Rate, 18.05 ft Maximum Head, 87 W, 115 V, 0.31/0.66/0.69 A, 60 Hz, 145.04 psi Maximum Pressure, 0.0751 hp, 1-1/4 in Connection, Union Connection, 1 ph Phase, 2-Poles, 35.6 to 230 deg F, Axial, Radial Bearing, Composite/PES/Stainless Steel, 5-1/16 in L x 5-14/16 in H, Additional Information: 5-7/8 in L Port-to-Port
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$590.00Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional Information5-7/8 " L Port-to-Port
Amperage Rating0.31/0.66/0.69
Bearing TypeAxial, Radial
Connection Size1-1/4
Connection TypeUnion
Dimensions5-1/16 " L x 5-14/16 " H
Flow Rate25.1
Frequency Rating60
HP Rating0.0751
MaterialComposite/PES/Stainless Steel
Maximum Head18.05
Maximum Pressure145.04
ModelUPS 15-55 SUC
Number of Poles2
Phase1
Power Rating87
SeriesUPS Series
Temperature Rating35.6 to 230
Voltage Rating115
Additional Information
AISI 304|CSA Certified|DIN W.-Nr. 1.4301|UL Listed|cULus Listed|NSF/ANSI 61
Features & Benefits
- Ceramic shaft and radial bearings Carbon axial bearing Stainless steel rotor can and bearing plate
Marketing Information
Grundfos UPS N circulator pumps have a corrosion-free stainless steel pump housing and are recommended for domestic hot water recirculation and underfloor heating systems. UPS N can be connected to an on/off time switch to limit pump operation to periods when hot water is usually required. The pump is of the canned rotor type, that is pump and motor form an integral unit without shaft seal and with only two-gaskets for sealing. The bearings are lubricated by the pumped liquid.
Grundfos UPS Series UPS 15-55 SUC 59896781 Circulator Pump, 25.1 gpm, 87 W, 115 V, 0.31/0.66/0.69 A, 60 Hz
BrandGrundfos
MFG #59896781
Keller #352501
