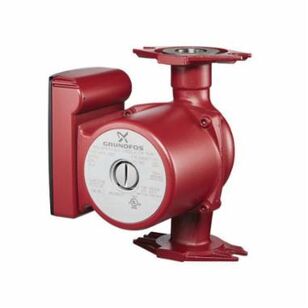

Grundfos UP Series UP 15-55 SUC 59896786 Circulator Pump, 21.6 gpm, 97 W, 230 V, 0.42 A, 60 Hz, 145.04 psi Max Pressure
Grundfos UP Series UP 15-55 SUC 59896786 Circulator Pump, 21.6 gpm, 97 W, 230 V, 0.42 A, 60 Hz, 145.04 psi Max Pressure
Grundfos Circulator Pump, Series: UP Series, Model: UP 15-55 SUC, 21.6 gpm Flow Rate, 17.06 ft Maximum Head, 97 W, 230 V, 0.42 A, 60 Hz, 145.04 psi Maximum Pressure, 0.13 hp, 1-1/4 in Connection, Union Connection, 1 ph Phase, 2-Poles, 35.6 to 230 deg F, Axial, Radial Bearing, Composite/PES/Stainless Steel, 5-1/16 in L x 5-14/16 in H, Additional Information: 5-7/8 in L Port-to-Port
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$750.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional Information5-7/8 " L Port-to-Port
Amperage Rating0.42
Bearing TypeAxial, Radial
Connection Size1-1/4
Connection TypeUnion
Dimensions5-1/16 " L x 5-14/16 " H
Flow Rate21.6
Frequency Rating60
HP Rating0.13
MaterialComposite/PES/Stainless Steel
Maximum Head17.06
Maximum Pressure145.04
ModelUP 15-55 SUC
Number of Poles2
Phase1
Power Rating97
SeriesUP Series
Temperature Rating35.6 to 230
Voltage Rating230
Additional Information
AISI 304|CSA Certified|DIN W.-Nr. 1.4301|UL Listed|cULus Listed|NSF/ANSI 61/372
Features & Benefits
- Ceramic shaft and radial bearings Carbon axial bearing Stainless steel rotor can and bearing plate
Marketing Information
Grundfos up B circulator pumps have a bronze pump housing for drinking water applications while grundfos up N have a stainless steel pump housing. Both variants are recommended for underfloor heating systems as the pumped liquid may often become aerated, causing corrosion in cast iron pump housings. The pump is of the canned rotor type, that is pump and motor form an integral unit without shaft seal and with only two-gaskets for sealing. The bearings are lubricated by the pumped liquid.
Grundfos UP Series UP 15-55 SUC 59896786 Circulator Pump, 21.6 gpm, 97 W, 230 V, 0.42 A, 60 Hz, 145.04 psi Max Pressure
BrandGrundfos
MFG #59896786
Keller #352505
