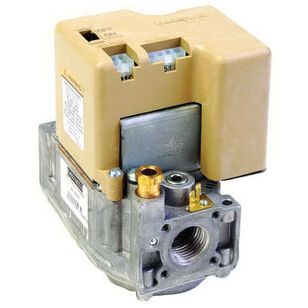

Honeywell SV9502H2522 SmartValve Gas Valve, 1/2 in, FNPT, 1/2 psi
Honeywell SV9502H2522 SmartValve Gas Valve, 1/2 in, FNPT, 1/2 psi
Honeywell SmartValve Gas Valve, 1/2 in Nominal, FNPT Connection, 1/2 psi Pressure, Intermittent Hot Surface Pilot Ignition, 24 VAC at 50/60 Hz, 20 to 200 cfh, 150 cfh at 1 in Pressure Drop Nominal, LP Gas, Natural Gas Fuel, NPT Pressure Tap Hose Connection, 0 to 175 deg F Ambient, Dimensions: 4.1 in L x 3.2 in W x 4.9 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,064.98 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Connection TypeFNPT
Dimensions4.1 " L x 3.2 " W x 4.9 " H
Fuel TypeLP Gas, Natural Gas
Hose Connection TypeNPT Pressure Tap
Ignition TypeIntermittent Hot Surface Pilot
IndustryHVAC
Nominal Capacity20 to 200 cfh, 150 cfh at 1 " Pressure Drop
Nominal Size1/2
Pressure Rating1/2
Temperature Rating0 to 175 deg F Ambient
Voltage Rating24 VAC at 50/60 Hz
Additional Information
CSA 112395
Features & Benefits
- Ignition sequence includes timed trial for ignition 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically-mounting Universal tradeline value 1.6 s at 3 uA flame failure response time 15 s pre-purge time Intermittent pilot ignition sequence HSI flame sense, pilot ignition source Continuous retry ignition trials to lockout 90 s ignition trial time Q3450, Q3480 typical ignition hardware Straight through configuration
Marketing Information
The SmartValve® system controls combine gas flow control and electronic intermittent pilot sequencing functions into 1-unit. This product family offers several different intermittent pilot sequences for a wide range of applications. The specific application of the SmartValve® system is the responsibility of the appliance manufacturer. They are directly compatible with the Q3450 or Q3480 intermittent pilot burners used with the original controls on the appliance.
Honeywell SV9502H2522 SmartValve Gas Valve, 1/2 in, FNPT, 1/2 psi
BrandHoneywell
MFG #SV9502H2522/U
Keller #359175
My Part ##
Last Ordered#
$1,064.98 / ea
