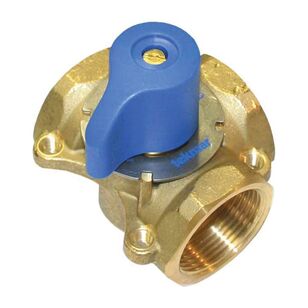

Tekmar® 712 Mixing Valve, 1-1/4 in, FNPT, 146 psi, Brass
Tekmar® 712 Mixing Valve, 1-1/4 in, FNPT, 146 psi, Brass
Tekmar® Mixing Valve, 1-1/4 in Nominal, FNPT Connection, Number of Ports/Ways: 3-Ways, 146 psi, 21 Cv Flow Coefficient (Cv), Brass, Material Standard: CW617N - EN 12165, Water Service, -20 to 248 deg F, 3-1/4 in L x 3-1/4 in W x 3-5/8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$433.00 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTekmar®
Connection TypeFNPT
Dimensions3-1/4 " L x 3-1/4 " W x 3-5/8 " H
Flow Coefficient (Cv)21
IndustryHydronics
MaterialBrass
Material StandardCW617N - EN 12165
Nominal Size1-1/4
Number of Ports/Ways3-Ways
Pressure Rating146
Service TypeWater
Temperature Rating-20 to 248
Features & Benefits
- It is designed for use in either closed loop or open loop hydronic systems This three way valve has standard female NPT threads, as well as a maximum leak through rate of 1 percent to allow for water expansion during temperature changes The valve position can be manually set using the handle An actuating motor 741 can be used to automatically operate the valve EPDM peroxide o-ring 3 year limited warranty
Documents
Marketing Information
The three way brass mixing valve 712 is used to mix supply water from a hydronic source with water returning from a system. It is designed for use in either closed loop or open loop hydronic systems. This three way valve has standard female NPT threads, as well as a maximum leak through rate of 1 percent to allow for water expansion during temperature changes. The valve position can be manually set using the handle. An actuating motor 741 can be used to automatically operate the valve.
Tekmar® 712 Mixing Valve, 1-1/4 in, FNPT, 146 psi, Brass
BrandTekmar®
MFG #712
Keller #360231
