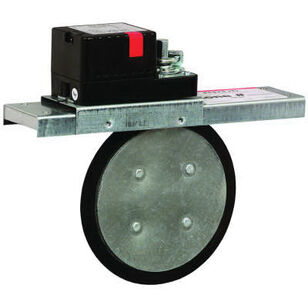

Honeywell RRD8 Zone Damper, Round, 35 in-lb
Honeywell RRD8 Zone Damper, Round, 35 in-lb
Honeywell Zone Damper, RRD Series, 5 to 95% RH Non-Condensing Humidity Rating, 90 s Timing, 35 in-lb Torque, Steel, Finish: Galvanized, Shaft Down Mounting, Power Open, Power Closed Motor, Motor Specifications: 24 VAC at 50/60 Hz, 2.5 VA, Round Shape, <0.05 in-WC, 41 to 122 deg F, 10-3/4 in Length
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$451.88Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
ApplicationFor retrofit zoning in forced air heating and cooling systems
FinishGalvanized
Humidity Rating5 to 95% RH Non-Condensing
IndustryHVAC
Length10-3/4
MaterialSteel
Motor Specifications24 VAC at 50/60 Hz, 2.5 VA
Motor TypePower Open, Power Closed
Mounting TypeShaft Down
Pressure Rating<0.05
SeriesRRD Series
ShapeRound
Temperature Rating41 to 122
Timing Range90
Torque Rating35
Additional Information
NEMA 1, UL Listed
Features & Benefits
- Easy slip in design Quiet, long life motor automatically shuts itself off in full open and closed positions Gaskets around blade and under motor housing for low internal leakage and very low external leakage Range stops with easy adjustments from top of motor Easy to see and reliable mechanical blade position indicator Easy to hook-up with conventional thermostat wire Simple manual blade positioning with pushbutton gear release
Marketing Information
The RRD is a round damper that is easily inserted into rigid round ducts for retrofit zoning in forced air heating and cooling systems. This power open, power closed damper actuator is available in four sizes for 5, 6, 7 and 8 in ducts.
Honeywell RRD8 Zone Damper, Round, 35 in-lb
BrandHoneywell
MFG #RRD8/U
Keller #360574
My Part ##
Last Ordered#
$451.88Â /Â ea
