ETL File No. 3166285

• Easy-to-use Simple to install Can operate contactor coils upto 1.25 A Activation level 1-1/2 in D from bottom of probe

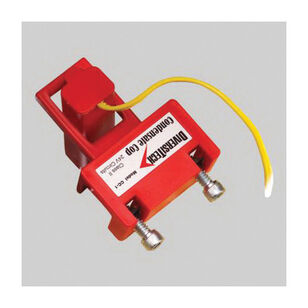

Condensate Cop™ is a unique clamp-on float switch intended for HVAC drain pan installation. The Condensate Cop™ features a large over-clamping area that fits easily over the edge of all types of drain pans including formed plastic and galvanized sheet metal. A separate float/probe assembly swivels to accommodate drain pans having sloped sides. The swivel action allows the installer to position the float switch for best operation and then clamp it into place. The probe features an inlet grill which prevents the float from being blocked or damaged by insulation or other debris. Sealed inside the probe is a magnetically actuated normally closed switch. The switch opens when rising water presents a potential flooding condition. Two wire connection for easy hookup to a thermostat in (compressor) circuit. Provided complete with 5 ft leads, wire nuts and clamping screws. Small size, 24 V/1.5 A NC reed switch. ETL Listed File Number 3166285.
