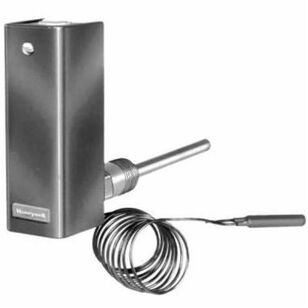

Honeywell L8100B1128 Aquastat Controller, SPST, Immersion Well Mounting, 100 to 180 deg F, 5 deg F Differential
Honeywell L8100B1128 Aquastat Controller, SPST, Immersion Well Mounting, 100 to 180 deg F, 5 deg F Differential
Honeywell Aquastat Controller, 3/8 in Bulb, 39 in Capillary Length, SPST Contact Configuration, Immersion Well Mounting, 100 to 180 deg F, 5 deg F Differential Temperature, 5-5/8 in H x 2 W x 2-1/8 in D, Additional Information: 39 in L Capillary
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$908.50Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional Information39 " L Capillary
Bulb Size3/8
Capillary Length39
Contact ConfigurationSPST
Differential Temperature5
Dimensions5-5/8 " H x 2 W x 2-1/8 " D
Mounting TypeImmersion Well
Temperature Rating100 to 180
Additional Information
UL Listed
Features & Benefits
- Regulates temperature and provides energy cut-off (ECO) action on a temperature rise past the set point Includes a second sensing element that senses average water temperature to minimize stacking Fluid-filled element operates micro switch SPST snap-acting switch Eco switch interrupts the thermocouple circuit or main valve before tank reaches 210 deg F maximum temperature Includes factory installed immersion well on controller Internal adjustment screw Special switch terminal provides 3-wire hook up from aqua stat controller to gas valve
Marketing Information
L8100 are immersion type controllers for regulating and limiting the tank temperature in water heater and hydronic systems. As the water temperature rises past the set point, the controller switches off the gas valve.
Honeywell L8100B1128 Aquastat Controller, SPST, Immersion Well Mounting, 100 to 180 deg F, 5 deg F Differential
BrandHoneywell
MFG #L8100B1128/U
Keller #361904
