ASTM E814, E119|UL 1479

• Frame textured and paintable ABS Single frame for ice maker application Louvered frame insert provides 7.99 sq-in of free grate area Solid cover plate provides a clean look for frequently used accessible plumbing valves Outlet box made from tough ABS Outlet box installs directly to stud or by bracket Outlet box may be installed with supply from above or below Outlet box one-hole boxes for ice maker, toilet, gas and AAV access, two-hole boxes for wash, lavatory access Outlet box washing machine supply box can be placed above or to the left and to the right of drain box and includes debris cover

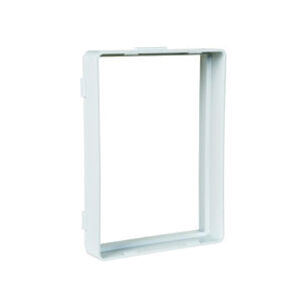

Sioux Chief 696-EX OxBox™ frame extension shall be used where necessary in accessible plumbing applications. The extension shall extend the outlet box face 1/2 in and accommodate additional layers of drywall. The extension shall be affixed to a current 696 drain or supply box. Multiple extensions can be used in combination to achieve most depths needed when providing access within the 696 Series.
