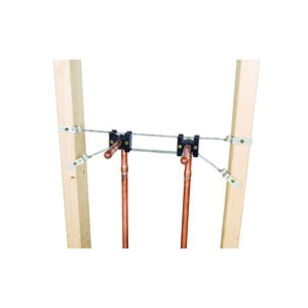

Sioux Chief STRONGARM™ 525-1622 Bracket, 25 lb Weight, 1/2 in Pipe, Steel, Galvanized, Screw, Stud, Wall Mounting
Sioux Chief STRONGARM™ 525-1622 Bracket, 25 lb Weight, 1/2 in Pipe, Steel, Galvanized, Screw, Stud, Wall Mounting
Sioux Chief Bracket, 525 Series, 25 lb Weight, 1/2 in Pipe, Steel, Finish: Galvanized, Screw, Stud, Wall Mounting, 140 deg F, 16 ga Gauge, 17-1/4 in Overall Length, 7/8 in Overall Width, 1-3/4 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6.87 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
ApplicationFor 16 in stud bays
FinishGalvanized
Gauge16
Includes(2) 1/2 in LockBlocks and Approved Hardware
MaterialSteel
Mounting TypeScrew, Stud, Wall
Overall Height1-3/4
Overall Length17-1/4
Overall Width7/8
Pipe Size1/2
Series525 Series
Temperature Rating140
Weight Capacity25
Additional Information
cUPC Listed|IAPMO Certified
Features & Benefits
- Rigidly secures any 1/2 to 1 in CTS stub out and prevents all movement LockBlocks™ are pre-assembled on a pair of brackets or available with 2-1/2 in screws to mount directly to structure Twisted brackets easily mount to the face of the stud and L-bent brackets mount inside the stud cavity LockBlocks™ compress on tube and brackets after screws are tightened
Marketing Information
Sioux Chief 525 Series StrongArm™ with LockBlock™ bracketing system shall be used where necessary for securing CTS stub outs when penetrating a wall. Bracket shall be corrosion-resistant with twisted ends to mount to the surface of a wood or metal stud wall. System shall include approved hardware. System shall include slideable, plastic block device to position and secure CTS stub out at any desired location within the stud cavity. When screws on blocks are tightened, compression of blocks prevents lateral movement on brackets and simultaneously compresses on tube to prevent stub out movement. LockBlocks™ shall be compatible with copper, CPVC or PEX tube. System shall be IAPMO certified.
Sioux Chief STRONGARM™ 525-1622 Bracket, 25 lb Weight, 1/2 in Pipe, Steel, Galvanized, Screw, Stud, Wall Mounting
BrandSioux Chief
MFG #525-1622
Keller #368039
