WATTS® 40L Series 40L-2-150-1 Temperature and Pressure Relief Valve, 1 in Nominal, MNPT x FNPT, 150 psi, 210 deg F
WATTS® 40L Series 40L-2-150-1 Temperature and Pressure Relief Valve, 1 in Nominal, MNPT x FNPT, 150 psi, 210 deg F
WATTS® Temperature and Pressure Relief Valve, 40L Series, 1 in Nominal, MNPT x FNPT Connection, 150 psi, Water Media, Bronze Body, Stainless Steel Trim, 210 deg F, 6-1/4 in H x 2-3/4 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,207.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialBronze
Connection TypeMNPT x FNPT
Dimensions6-1/4 " H x 2-3/4 " W
IndustryPlumbing
MediaWater
Nominal Size1
Pressure Rating150
Series40L Series
Temperature Rating210
Trim MaterialStainless Steel
Additional Information
ASME Specified|ANSI Z21.22|Buy American Act Compliant|cCSAus Certified|CSA Certified|FHA and ANSI Z21.22|MIL-V-136-12D Type I|National Board of B and PVI to Section IV of the ASME B and PV Code
Features & Benefits
- Non-mechanical seat to disc alignment
Documents
Marketing Information

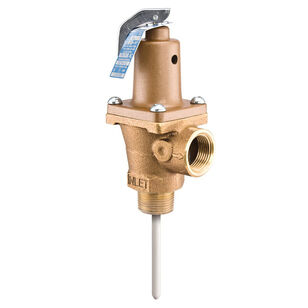

This 1 in bronze automatic reseating temperature and pressure relief valve with a 3 in thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT male inlet and NPT female outlet connections, thermo bonded coated thermostat, tamper-resistant bonnet screws, automatic reseating feature and test lever. The temperature relief is 210 deg (99 deg C) and the pressure relief is 150 psi.
