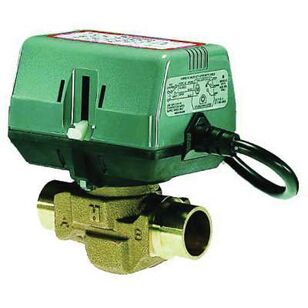

Honeywell VC8715AM1000/U Motorized Zone With Auxiliary switch, 3/4 in, Sweat, 5.8 Cv, Bronze
Honeywell VC8715AM1000/U Motorized Zone With Auxiliary switch, 3/4 in, Sweat, 5.8 Cv, Bronze
Honeywell Motorized Zone With Auxiliary switch, 3/4 in Nominal, Sweat Connection, Number of Ways/Position: 2-Ways, 300 psi, 5.8 Cv Flow Coefficient (Cv), Bronze, Integral Actuator, Water with Maximum 50% Glycol Service, 24 VAC, VA Rating: 6 VA, 32 to 140 deg F Ambient, 34 to 203 deg F Fluid, 3-1/2 in L x 2-3/4 in W x 4-3/8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$455.98Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Actuator TypeIntegral
Connection TypeSweat
Dimensions3-1/2 " L x 2-3/4 " W x 4-3/8 " H
Flow Coefficient (Cv)5.8
IndustryHVAC
MaterialBronze
Nominal Size3/4
Number of Ways/Position2-Ways
Pressure Rating300
Service TypeWater with Maximum 50% Glycol
Temperature Rating32 to 140 deg F Ambient, 34 to 203 deg F Fluid
VA Rating6
Voltage Rating24
Features & Benefits
- Control central heating/cooling systems, fan coil systems, radiators and convectors, depending on model, can be controlled by either a low or line voltage SPST/SPDT or floating controller such as a room thermostat, aquastat control or flow switch Minimal actuator power consumption Double insulated actuator Quick-connect or one-meter cables electrical connections Quick and easy replacement of moving parts Actuator head installation does not require draining the system On/off model with 6 s nominal timing 6 s nominal timing 24 VAC, 2.2 A pilot-duty, class 2, SPST auxiliary switch rating 24 VAC on/off control signal 40 in color-coded cables electrical connection Water with maximum 50% glycol controlled fluid Quick open flow characteristics Integral, 24 V SPST, series 80 actuation
Honeywell VC8715AM1000/U Motorized Zone With Auxiliary switch, 3/4 in, Sweat, 5.8 Cv, Bronze
BrandHoneywell
MFG #VC8715AM1000/U
Keller #370351
My Part ##
Last Ordered#
$455.98Â /Â ea
