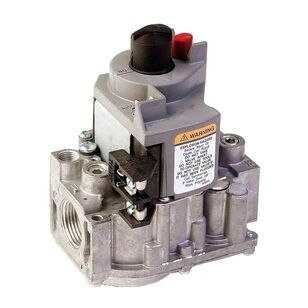

Honeywell VR8300A4516/U Combination Gas Control Valve, 3/4 in, 1/2 psi
Honeywell VR8300A4516/U Combination Gas Control Valve, 3/4 in, 1/2 psi
Honeywell Combination Gas Control Valve, 3/4 in Nominal, 1/2 psi Pressure, 1 Stage, Standing Pilot Ignition, Electrical Connection: 1/4 in Male Quick-Connect Terminal, 24 VAC at 60 Hz, 30000 to 300000 Btu/hr Natural Gas, 200000 Btu/hr at 1 in-WC Pressure Drop Nominal, LP Gas, Natural Gas Fuel, NPT with Plug Pressure Tap, Compression Tube Pilot Hose Connection, 0 to 175 deg F, Dimensions: 5-3/8 in H x 4-1/16 in W x 2-11/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$497.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Brandresideo
Dimensions5-3/8 " H x 4-1/16 " W x 2-11/16 " D
Electrical Connection1/4 " Male Quick-Connect Terminal
Fuel TypeLP Gas, Natural Gas
Hose Connection TypeNPT with Plug Pressure Tap, Compression Tube Pilot
Ignition TypeStanding Pilot
Nominal Capacity30000 to 300000 Btu/hr Natural Gas, 200000 Btu/hr at 1 "-WC Pressure Drop
Nominal Size3/4
Number of Stages1
Pressure Rating1/2
Temperature Rating0 to 175
Voltage Rating24 VAC at 60 Hz
Additional Information
AGA 4717|CSA 112395|UL MCCZ2.MH5323
Features & Benefits
- Controls includes safety shut-off, manual valve, two automatic operators, pressure regulator and pilot adjustment Compact size Provides (2) automatic valves Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted Meets codes requiring dual safety shut-off All adjustments, wiring connections and pilot outlet are accessible from top of gas control Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure Compatible with Eco connector Lite-Rite (off-pilot-on) lighting sequence 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically-mounting Straight through with flange body pattern
Honeywell VR8300A4516/U Combination Gas Control Valve, 3/4 in, 1/2 psi
Brandresideo
MFG #VR8300A4516/U
Keller #370871
