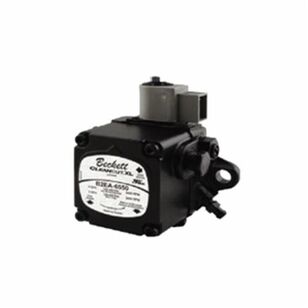

Beckett® CleanCut PF10422U Oil Pump
Beckett® CleanCut PF10422U Oil Pump
Beckett® CleanCut Oil Pump, 4 gal/hr, 12 VDC, 120 VAC, 9 W, 115 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$319.40 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBeckett®
Flow Rate4
IndustryHydronics
Power Rating9
Temperature Rating115
Voltage Rating12 VDC/120 VAC
Additional Information
cUL Listed, UL Listed
Features & Benefits
- The new Beckett CleanCut pump developed as a joint effort with Suntec industries combines the 'clean burning' benefits of a solenoid valve with the hefty lift capabilities of traditional American pumps Cleaner operation-the solenoid valve cuts oil flow almost instantly when power is cut to the motor, eliminating coasting stops that can cause soot formation on shut-down, pre-purge type controls work hand-in-hand with the CleanCut pump to establish airflow and bring pump pressure up to full operating levels before light-off, this ensures smoother and cleaner light-offs More reliable-there are fewer moving parts, compared to conventional pumps and fewer troublesome oil fittings to cause problems Reduced load on motor-configurations using an external valve deadhead pressure against the valve during start-up, increasing load on the motor, the CleanCut pump reduces demands on the motor during start-up by allowing oil to freely bypass the pump's piston Leak-through protection-the CleanCut pump utilizes the same piston valve used in traditional pumps, to provide the same level of protection from leak-through in gravity feed situations 100-200 lb/sq-in nozzle, 100 lb/sq-in factory setting, 10 lb/sq-in inlet and outlet #2 and lighter fuel oils Suction height: 8 ft maximum (1st pipe), 14 ft maximum (2nd pipe)
Documents
Beckett® CleanCut PF10422U Oil Pump
BrandBeckett®
MFG #PF10422U
Keller #371260
