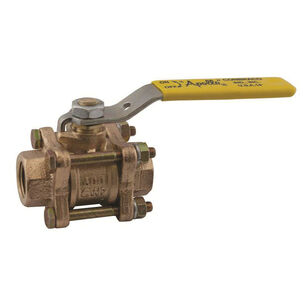

Apollo® 82-100 Series 82-105-01 Ball Valve, 1 in, FNPT, Bronze, 150 psi WSP, 600 psi CWP
Apollo® 82-100 Series 82-105-01 Ball Valve, 1 in, FNPT, Bronze, 150 psi WSP, 600 psi CWP
Apollo® Ball Valve, 82-100 Series, 1 in Nominal, FNPT Connection, Full Port, 3-Piece, Standard, 150 psi WSP, 600 psi CWP, Gas, Water Media, 1 in Orifice, 3.87 in Inlet to Outlet Length, 2.62 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B16, ASTM B584 C84400, Bronze Body, RPTFE Seat, Brass Stem, RPTFE Seal, Brass/RPTFE Trim, MPTFE Packing, Brass Ball, MPTFE/RPTFE Softgoods, Contains Lead, Yellow, 500 deg F, 3.87 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$189.56 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationFor heating, cooling, steam and vacuum applications
Ball MaterialBrass
Body MaterialBronze
ColorYellow
Configuration3-Piece, Standard
Connection TypeFNPT
Dimensions3.87 " L
Domestic/ImportDomestic
Inlet to Outlet Length3.87
Material StandardASTM B16, ASTM B584 C84400
MediaGas, Water
Nominal Size1
Operator TypeLever Handle
Orifice Size1
Packing MaterialMPTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi CWP
Seal MaterialRPTFE
Seat MaterialRPTFE
Series82-100 Series
Softgoods MaterialMPTFE/RPTFE
Stem MaterialBrass
Temperature Rating500
Top to Inlet Center2.62
Trim MaterialBrass/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)5.52" x 2.21" x 3.73"
Additional Information
CRN OC10908.5C|CSA B51|MSS-SP-110
Features & Benefits
- Dezincification-resistant bronze body Adjustable packing gland Blowout-proof stem design 100% factory tested Made in USA
Documents
Marketing Information
The Apollo® 82-100 Series is designed as an in line serviceable full-port bronze ball valve. SAE-grade body bolts and RPTFE seals are standard.
