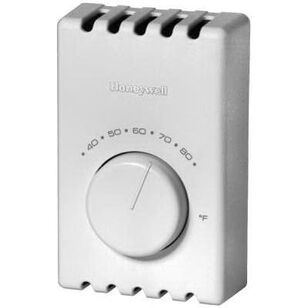

Honeywell T410B1004/U Electric Heat Thermostat, 120 to 277 VAC, 2280 to 6094 W, 1 Heat
MFG #T410B1004/U
Item #385780
Mfr. Part #T410B1004/U
UPC #085267088282
Honeywell Electric Heat Thermostat, 120 to 277 VAC, 22 A at 120 to 240 VAC and 19 A at 277 VAC Non-Inductive Resistive, 2280 to 6094 W Power, 60 Hz Frequency, 1 Heat Stages, Switch Position: Positive Off (System), DPST Switch, Bi-Metal Sensing Element, 3 deg F Differential, 40 to 80 deg F Settings, 40 to 85 deg F Ambient, 6 in Copper Lead Wire Connection, 2 deg C Accuracy, Hardwired Power Source, Vertical Mounting, Dimensions: 4-1/2 in H x 2-3/4 in W x 2-1/4 in D, White
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$64.15Â /Â ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
Brandresideo
Accuracy2
Amperage Rating22 A at 120 to 240 VAC and 19 A at 277 VAC Non-Inductive Resistive
ColorWhite
Connection Type6 " Copper Lead Wire
Differential Temperature3
Dimensions4-1/2 " H x 2-3/4 " W x 2-1/4 " D
Frequency Rating60
IndustryHVAC
Mounting TypeVertical
Power Rating2280 to 6094
Power SourceHardwired
Sensing ElementBi-Metal
Stages1 Heat
Switch PositionPositive Off (System)
Switch TypeDPST
Temperature Rating40 to 85 deg F Ambient
Temperature Settings40 to 80
Voltage Rating120 to 277
Additional Information
UL E4436, Guider XAPX, CSA LR1322 Certified
Features & Benefits
Economy thermostats that provide reliable line voltage control of resistive rated electric heating equipment, snap-action switch makes heating circuit on temperature fall
Four wire (T410B) line voltage wall-mounted electric heating thermostat
Rugged plastic mounting base and one-piece cover with vents
Ideally suited to new construction applications
Suitable for connecting to aluminum wiring if approved CO/ALR solder less connectors are used
