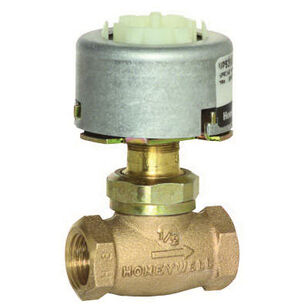

Honeywell VP531C1000/U Pneumatic Terminal Unit Valve With Actuator, 1/2 in Nominal, NPT, Configuration: NO
Honeywell VP531C1000/U Pneumatic Terminal Unit Valve With Actuator, 1/2 in Nominal, NPT, Configuration: NO
Honeywell Pneumatic Terminal Unit Valve With Actuator, 1/2 in Nominal, NPT Connection, NO, 150 lb/sq-in Body, 30 lb/sq-in Diaphragm, 2 Positions, 40-240 deg F, 230 deg F Safe Actuator Diaphragm, 2-9/32 in L x 4-1/8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$427.52Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ConfigurationNO
Connection TypeNPT
Dimensions2-9/32 " L x 4-1/8 " H
IndustryHVAC
Nominal Size1/2
Number of Positions2
Pressure Rating150 lb/sq-" Body, 30 lb/sq-" Diaphragm
Temperature Rating40-240 deg F, 230 deg F Safe Actuator Diaphragm
Features & Benefits
- Normally-open, single-seated valve provides proportional control of steam or hot or cold water in terminal units Easily replaceable actuator assembly for convenience of service Compact size for use inside most unit enclosures Includes 3-10 lb/sq-in spring is packed in box Replacement for VP531A1004 and VP531A1012 comment 5-95% RH operating humidity range 2-5 lb/sq-in spring range Push on for 1/4 in OD plastic tubing air connections Proportional normally open valve action Unitary valve type Water, steam controlled fluid 70 lb/sq-in differential at 20 lb/sq-in close-off ratings at branch line pressure
Honeywell VP531C1000/U Pneumatic Terminal Unit Valve With Actuator, 1/2 in Nominal, NPT, Configuration: NO
BrandHoneywell
MFG #VP531C1000/U
Keller #387553
