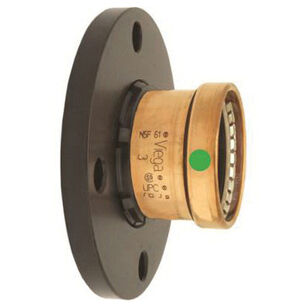

Viega ProPress® 0959.5XL Series 20853 Adapter Flange, 2-1/2 in Press, Copper
Viega ProPress® 0959.5XL Series 20853 Adapter Flange, 2-1/2 in Press, Copper
Viega Adapter Flange, 0959.5XL Series, Flange Fitting, Connection Size 1: 2-1/2 in, Connection Type 1: Press, Press Connection, Copper, Material Construction: Copper, For Use With: Viega ProPress® ASTM B88 and ASTM B75 Tubes, 2.79 in L x 7.09 in D x 0.7 in THK, 300 psi, 0 to 250 deg F, Additional Information: 4-Bolt Pattern, 5-1/2 in Dia Bolt Size
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$506.99 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandViega
Additional Information4-Bolt Pattern, 5-1/2 " Dia Bolt Size
ApplicationChilled Water, Compressed Air, Ethanol, Fire Sprinkler, Hot and Cold Potable Water, Hydronic Heating, Low Pressure Steam, Non-Medical Gases, Rain Water or Gray Water, Residential Steam and Vacuum Applications
Connection Size 12-1/2
Connection TypePress
Connection Type 1Press
Dimensions2.79 " L x 7.09 " D x 0.7 " THK
Fitting TypeFlange
For use with:Viega ProPress ASTM B88 and ASTM B75 Tubes
IncludesEPDM Sealing Element
IndustryPlumbing
Map227.18
MaterialCopper
Material ConstructionCopper
Pressure Rating300
Series0959.5XL Series
Temperature Rating0 to 250
Warranty50 Year
Shipping Dimensions (L x W x H)3.79" x 7.13" x 7.13"
Additional Information
ABS Approved|ANSI 61/372|ASME B16.51/B31.1/B31.3/B31.9|CSA Certified|FM Class 1920|IAPMO PS 117|ICC-ES IC1002|NFPA 13/13D/13R|NSF Certified|UL Listed|UNS C12200
Features & Benefits
- Smart Connect® technology Allows identification of an unpressed fitting during pressure testing Must be installed with -Viega -ProPress® -XL-C rings and V2 actuator
Marketing Information
Viega ProPress® is the trusted copper press joining solution. Since its introduction in 1999, it has reduced overall job costs, saved time and increased reliability on jobsites across the globe. Viega is the only company with Smart Connect® technology, which provides installers added confidence in their ability to ensure secure connections. With system matched tools, rings and jaws, press connections are made in seconds, making Viega ProPress® suitable for virtually any type of project.
