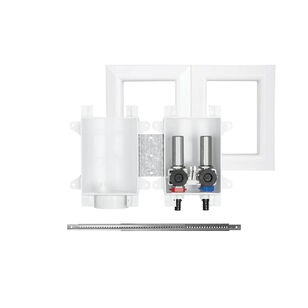

Sioux Chief OxBox™ 696R Series 696R2313XF Washing Machine Outlet Box With Arresters and Frame, 1/2 in, PEX, ABS
Sioux Chief OxBox™ 696R Series 696R2313XF Washing Machine Outlet Box With Arresters and Frame, 1/2 in, PEX, ABS
Sioux Chief OxBox™ Washing Machine Outlet Box With Arresters and Frame, 696R Series, 1/2 in, PEX Connection, Stud Mounting, ABS, 200 deg F, 5-1/2 in H x 4 in W x 3-1/2 in D, Domestic/Import: Import, Additional Information: 7-1/4 in H x 11-1/2 in W Frame Size, 150 psig Pressure Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$119.32 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional Information7-1/4 " H x 11-1/2 " W Frame Size, 150 psig Pressure Rating
Connection TypePEX
Dimensions5-1/2 " H x 4 " W x 3-1/2 " D
Domestic/ImportImport
IndustryPlumbing
MaterialABS
Mounting TypeStud
Series696R Series
Size1/2
Temperature Rating200
Additional Information
ASTM E814|CAN/ULC S115|IAPMO Approved|NSF 372
Features & Benefits
- Durable ABS boxes with 1/4-turn ball valves Mounts securely over stud or between studs Separate boxes for supply and drainage for flexible layout Test cap in drain box removes easily with pliers Included debris covers protect boxes from dust, mud and paint
Marketing Information
Sioux Chief 696 Series OxBox™ fire-rated outlet box shall be used where necessary in plumbing systems. Unit shall allow for mounting with supply lines from top or bottom, on stud or between-studs. Supply and drain boxes can be connected using U-clip (provided) or separated as desired. Unit shall include plated, 1/4-turn valves with 3/4 in MHT outlets. Valve outlets shall be provided with tamper-resistant test caps. Valve handles on arrester models can be operated together (single throw) or independently. Metal support bracket can be installed into top/bottom tracks of box. Drain box shall have a testable 5/8 in nipple on drain cover.
Sioux Chief OxBox™ 696R Series 696R2313XF Washing Machine Outlet Box With Arresters and Frame, 1/2 in, PEX, ABS
BrandSioux Chief
MFG #696R2313XF
Keller #393994
My Part ##
Last Ordered#
$119.32 / ea
