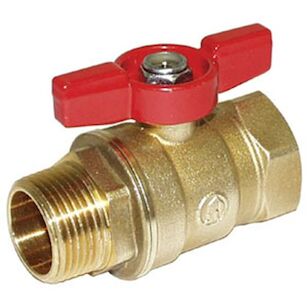

Legend Valve 101-531 Ball Valve, 1/4 in, MNPT x FNPT, Brass, 600 psi
Legend Valve 101-531 Ball Valve, 1/4 in, MNPT x FNPT, Brass, 600 psi
Legend Valve Ball Valve, 1/4 in Nominal, MNPT x FNPT Connection, L Port, 600 psi, 1.95 in Inlet to Outlet Length, 1.06 in Top to Inlet Center, T-Handle Operator, 7.63 Cv Flow Coefficient (Cv), Material Standard: ASTM B124 UNS C37700, ASTM A510 UNS G10060, Brass Body, TFM PTFE Seat, Brass Stem, Steel Handle, Brass Ball, Fluorocarbon Softgoods, Additional Information: Model T-900
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$19.83Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Additional InformationModel T-900
Ball MaterialBrass
Body MaterialBrass
Connection TypeMNPT x FNPT
Flow Coefficient (Cv)7.63
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length1.95
Material StandardASTM B124 UNS C37700, ASTM A510 UNS G10060
Nominal Size1/4
Operator TypeT-Handle
Port TypeL
Pressure Rating600
Seat MaterialTFM PTFE
Softgoods MaterialFluorocarbon
Stem MaterialBrass
Top to Inlet Center1.06
Additional Information
ANSI/ASME B1.20.1|ASME B16.44|CSA Certified|UL 757X
Features & Benefits
- Durable forged brass construction Space-saving male by female end connections are ideal for confined piping installations T-handle equipped models can be used as gauge-cock isolation valves, without the gauge face obstruction associated with a lever-handle equipped valve Bottom loaded blowout-proof stem is a maintenance-free, dual O-ring seal design, eliminating the need to tighten a packing nut Improved 3M Dyneon TFM PTFE seats and thrust washers provide enhanced sealing and isolation between the body and ball stem handle rotating assembly
Marketing Information
1/4" T-900 Forged Brass Ball Valve, MNPT x FNPT Tee Handle
Legend Valve 101-531 Ball Valve, 1/4 in, MNPT x FNPT, Brass, 600 psi
BrandLegend Valve
MFG #101-531
Keller #40078
My Part ##
Last Ordered#
$19.83Â /Â ea
