SIOUX 821-200PRBR DRAIN SHWR PAN PVC ORB R&S RND
SIOUX 821-200PRBR DRAIN SHWR PAN PVC ORB R&S RND

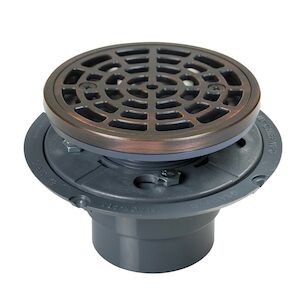

Sioux Chief Deluxe Shower Pan Drain, 821 Series, Round Shape, 2 in Nominal, Hub Connection, PVC Drain, 4-1/4 in Dia Grid, Nickel Bronze Grid, Screw-On Mounting, Oil-Rubbed Bronze, 3-15/16 to 5-15/16 in Overall Depth, Domestic/Import: Import, For Use With: Tile-Floor Showers, Additional Information: 5-7/8 in Dia Flange, 1000 lb Load Rating, 4.5 sq-in Strainer Area, 6 gpm Flow Rate, SCH 40 Schedule Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$108.05Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional Information5-7/8 " Dia Flange, 1000 lb Load Rating, 4.5 sq-" Strainer Area, 6 gpm Flow Rate, SCH 40 Schedule Rating
Connection TypeHub
Domestic/ImportImport
Drain MaterialPVC
FinishOil-Rubbed Bronze
Grid MaterialNickel Bronze
Grid Size4-1/4 " Dia
Mounting TypeScrew-On
Nominal Size2
Overall Depth3-15/16 to 5-15/16
Series821 Series
ShapeRound
Suitable For Use WithTile-Floor Showers
Additional Information
ASME A112.18.2-2005|CSA B125.2-05
Features & Benefits
- For use in tile-floor showers with a waterproofing membrane Round or square cast ring/strainer Beveled drain body and mounting holes for easy subfloor installation
Documents
Marketing Information
Sioux Chief 821 series shower pan drain shall be used where necessary in drainage systems. Drain shall have a beveled flashing base adapter with peripheral mounting holes for securing to subfloor. Strainer shall meet all load and flow requirements for installations in shower areas. Invertible clamping collar shall fasten to drain body with four screws that thread into brass inserts. Drain body shall have a 2" Sch. 40 hub connection and connect to DWV pipe via solvent weld joint. Designed in accordance with ASME A112.18.2-2005 / CSA B125.2-05.
SIOUX 821-200PRBR DRAIN SHWR PAN PVC ORB R&S RND
BrandSioux Chief
MFG #821-200PRBR
Keller #408314
My Part ##
Last Ordered#
$108.05Â /Â ea
