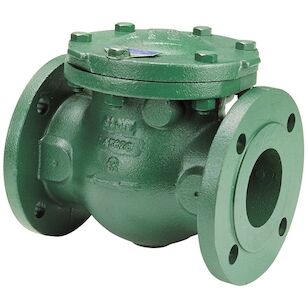

F93833 8 FLG CK W/316SS TRIM DI
F93833 8 FLG CK W/316SS TRIM DI
F93833 8 FLG CK W/316SS TRIM DI
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$26,226.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
All Basic MaterialDuctile Iron
All Type Of ItemValve
End ConnectionFlanged
Height13.5"
IndustryPlumbing
Length19.5"
Made in USATrue
MadetoorderTrue
MaterialDuctile Iron
Mpg27
Mto Or Ato MaterialsMTO
Nominal Pipe Size8
Nominal Size 18".
Prop 65 WarningYes
Seat Seal MaterialStainless Steel
Size Dimensions8".
Turns OperationsNon-Manual
Type Of Check ValveSwing
Type Of ValveCheck Valve
Valve End Connection TypeF -- Flanged
Valve Multi Turn Bonnet DesignBolted Bonnet
Valve Pressure Rating Cwp285 PSI/19.7 Bar CWP
Valve Pressure Rating Swp185 PSI/12.8 Bar SWP
Valve Trim PackageStainless Steel Trim
Weight254.92 lbs.
Width16.19"
Features & Benefits
- 250 psi/17.2 bar non-shock cold working pressure
- 150 psi/10.3 bar saturated steam to 366 degreeF/185 degreeC
- Bolted bonnet
- Renewable seat and disc
- Iron body, bronze mounted (IBBM)
- Stainless steel trim
- Class 150 flanged end connections
- Conforms to MSS SP-136
Documents
Marketing Information
Swing checks may be installed in horizontal positions (or vertical with flow moving up). With its ductility, the valve displays higher physical properties than standard grey cast iron. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO check valves are backed by the NIBCO 5-year 125 Percent limited warranty.
F93833 8 FLG CK W/316SS TRIM DI
BrandNIBCO®
MFG #NHE970L
Keller #416035
My Part ##
Last Ordered#
$26,226.00Â /Â ea
