cULus and cUL Listed|UL 441|cUL S605

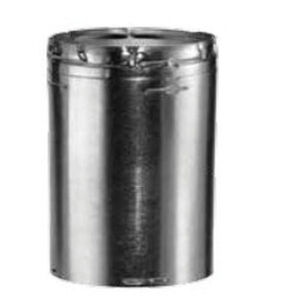

• Gas Vent Pipe To calculate installed length, subtract 1-1/2 in (for 10 to 16 in Dia ) and 1-1/8 in (for 18 to 30 in Dia) from each connection of vent 1 in clearance (air space) to combustible materials must be maintained 0.12 in inner wall size 0.018 in outer wall size

DuraVent® innovative system for a lock-tight connection for type B gas vent called DuraLock. See the alignment indicators meet, feel the eNDS® grasp together, hear the snap as the connection firmly locks into place. DuraVent® type B gas vent is designed to meet the rugged demaNDS® of the job site. The inner wall is recessed to eliminate damage in handling. Type B gas vent has been engineered to heat up rapidly. It remains hot during the operation of the appliance with minimal condensation in the appliance and vent system. Pipe lengths are available in multiple lengths, 6 to 60 in, with a full complement of adjustable and rigid fittings. Type B gas vents are not suitable for use with wood burning or coal applications, industrial ovens, exhaust ranges and hoods, grease or pollution ducting or as free-standing exhaust vents for high temperature applications.
