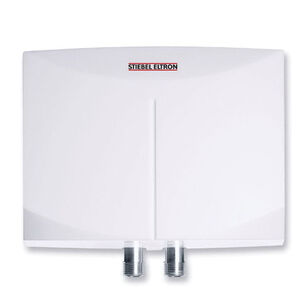

Stiebel Eltron Mini 3-1 220816 Tankless Electric Water Heater, 3 W, 1 ph, 120 V
Stiebel Eltron Mini 3-1 220816 Tankless Electric Water Heater, 3 W, 1 ph, 120 V
Stiebel Eltron Tankless Electric Water Heater, Model: Mini 3-1, 3 W, 0.4 gpm Flow Rate, 0.99 Energy Factor, 99 % Efficiency, 25 A, 120 V, 50/60 Hz, 1 ph Phase, Hose Connection, 3/8 in Connection, 30 to 150 psi, Wall Mounting, 10 AWG Wire, Plastic, White, Lead-Free, 86 to 122 deg F, 6-1/2 in H x 7-1/2 in W x 3-1/4 in D, Nichrome Element
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$279.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandStiebel Eltron
Amperage Rating25
ColorWhite
Connection Size3/8
Connection TypeHose
Dimensions6-1/2 " H x 7-1/2 " W x 3-1/4 " D
Efficiency99
Element MaterialNichrome
Energy Factor0.99
Flow Rate0.4
Frequency Rating50/60
IndustryPlumbing
Lead-FreeYes
MaterialPlastic
ModelMini 3-1
Mounting TypeWall
Phase1
Power Rating3
Pressure Rating30 to 150
Temperature Rating86 to 122
Voltage Rating120
Wire Size10
Shipping Dimensions (L x W x H)9" x 10" x 6.13"
Additional Information
ANSI Specified|CAN/CSA E335-1/E335-2-35|cETLus Listed|UL 499
Features & Benefits
- Continuous supply of warm water on demand High-limit switch with manual reset Easy installation 3/8 in OD flex connections Engineered in Germany to be the best Exclusive design prevents dry firing No T and P relief valve needed Comes complete with wire pigtail Correctly sized aerator supplied with unit No standby heat loss with tankless design Flow switch activated for virtually silent operation Cold-water only line needed to be run to lavatory Compact and designed to be visible or hidden in cabinet Compatible with sensor actuated or metered faucets Tankless design prevents legionella bacteria growth
Marketing Information
The tankless electric water heater shall be equipped with a direct coil nichrome-type heating element housed in fiberglass reinforced high-temperature plastic containment. The housing of the unit shall be made of high-impact polycarbonate plastic. The flow switch that operates the heating element shall be of the mechanical pressure differential-type. The unit shall be equipped with a safety high-limit switch with manual reset. The water connections shall be designed for standard 3/8 in OD flexible braided stainless steel hose-type connectors. The unit shall be mounted with water connections facing either top or bottom only. The units shall ship with a AWG 12 wire harness with a 2 ft L. The unit shall be certified to ANSI ANSI/UL Std 499 and shall conform to CAN/CSA E335-1 and E335-2-35 (Mini™ models) or CAN/CSA C22.2 No. 64 (Mini™-E models).
