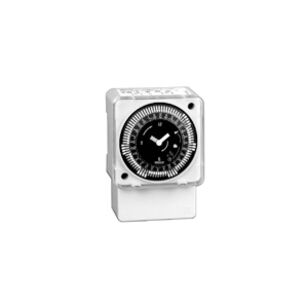

Intermatic® MIL72 Series MIL72ASTUZH-24 Time Switch, 24/120/240 VAC, 21 A, 50/60 Hz, 1 day Timing, SPDT
Intermatic® MIL72 Series MIL72ASTUZH-24 Time Switch, 24/120/240 VAC, 21 A, 50/60 Hz, 1 day Timing, SPDT
Intermatic® Time Switch, Series: MIL72 Series, 24/120/240 VAC, 21 A, 50/60 Hz, 0.1 VA, 0.5 VA, 1 VA, 2 Pole, SPDT, 15 min to 23 hr 45 min Time Settings, 1 day, Switch Rating: 21 A, 12 AWG Wire, DIN Rail, Flush, Surface Mount, Quick-Connect, Screw Terminal, 48 cycles Operating Cycles, -40 to 185 deg F, 4-3/4 in H x 3-1/4 in W x 3-1/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$82.53 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Amperage Rating21
Contact ConfigurationSPDT
Dimensions4-3/4 " H x 3-1/4 " W x 3-1/4 " D
Frequency Rating50/60
IndustryHydronics
Mounting TypeDIN Rail, Flush, Surface
Number of Poles2
Operating Cycles48
Power Rating0.1 VA, 0.5 VA, 1 VA
SeriesMIL72 Series
Switch Rating21
Temperature Rating-40 to 185
Terminal TypeQuick-Connect, Screw
Time Settings15 min to 23 hr 45 min
Timing Range1
Voltage Rating24/120/240
Wire Size12
Additional Information
California Title 20 Compliant|CE Certified|cULus File No. E10694|cCSAus File No. LR3730|UL Listed
Features & Benefits
- Synchronous drive or quartz drive with battery backup Captive trippers with 15 min intervals, 2 hr for 7 days With or without three way override True clock face
Documents
Marketing Information
The MIL72 Series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush/panel mounting.
Intermatic® MIL72 Series MIL72ASTUZH-24 Time Switch, 24/120/240 VAC, 21 A, 50/60 Hz, 1 day Timing, SPDT
BrandIntermatic®
MFG #MIL72ASTUZH-24
