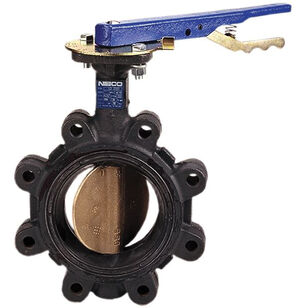

NIBCO LC2000-3-2-1/2 CI BFLY VLV
NIBCO LC2000-3-2-1/2 CI BFLY VLV
NIBCO® Butterfly Valve, LC-2000 Series, 2-1/2 in Nominal, Lug Connection, 200 psi, Water Media, 1-1/4 in Top to Inlet Center, Iron Body, Stainless steel Stem, EPDM Seal, Aluminum Bronze Disc, Quarter Turn Locking Lever Handle Operator, 225 deg F, Material Standard: ASTM A126, A582, B148, Lead-Free, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$555.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialIron
Connection TypeLug
Disc MaterialAluminium Bronze
Domestic/ImportDomestic
IndustryPlumbing
Lead-FreeYes
Material StandardASTM A126, A582, B148
MediaWater
Nominal Size2-1/2
Operator TypeQuarter Turn Locking Lever Handle
Pressure Rating200
Seal MaterialEPDM
SeriesLC-2000 Series
Stem MaterialStainless Steel
Temperature Rating225
Top to Inlet Center1-1/4
Warranty5 Year Limited
Shipping Dimensions (L x W x H)12.88" x 11.74" x 5.13"
Additional Information
API 609|California Health and Safety Code Section 116875|MSS SP 25/67|NSF/ANSI 61/372|US Coast Guard Category A|Vermont Act 193
Features & Benefits
- EPDM molded-in seat liner Stainless steel stem with copper bushings Geometric drive Extended neck
Marketing Information
The NIBCO® cast iron butterfly valve provides ease of operation with quarter-turn (90 deg) open to close. The unique molded-in EPDM seat liner with aluminum bronze disc is recommended for most water applications. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 in. Choose NIBCO® cast iron butterfly valves for versatile and economical valve applications in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO® 5 years 125% limited warranty.
