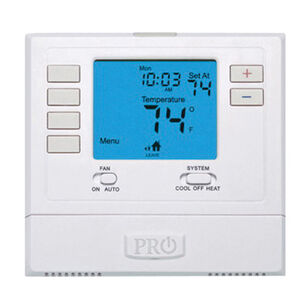

PRO1 T715 5+1+1 PROG 2H/2C MULTI STAGE
PRO1 T715 5+1+1 PROG 2H/2C MULTI STAGE
PRO1® Programmable Thermostat, 18 to 30 VAC, 50/60 Hz Frequency, Programmability: 5/1/1 day Program, Battery, Hardwired Power Source, 2 Heat/2 Cool Stages, Switch Position: HEAT-OFF-COOL (System), AUTO-ON (Fan), 4 sq-in LCD Display, 0.2 to 2 deg F Differential, 41 to 95 deg F Settings, 32 to 105 deg F, 90% Non-Condensing Humidity, +/-1 deg F Accuracy, Wall, Junction Box Mounting, Terminal Designation: RH, RC, C, Y, Y2, W, W2, G, O, B, White, Dimensions: 4.4 in H x 4.7 in W x 1.1 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$191.61 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandPRO1®
Accuracy+/-1 deg F
ColorWhite
Differential Temperature0.2 to 2 deg F
Dimensions4.4" H x 4.7" W x 1.1" D
Display Type4 sq-in LCD
Frequency Rating50/60 Hz
Humidity Rating90% Non-Condensing
IndustryHVAC
Mounting TypeWall, Junction Box
Power SourceBattery, Hardwired
Programmability5/1/1 day Program
Stages2 Heat/2 Cool
Switch PositionHEAT-OFF-COOL (System), AUTO-ON (Fan)
Temperature Rating32 to 105 deg F
Temperature Settings41 to 95 deg F
Terminal DesignationRH, RC, C, Y, Y2, W, W2, G, O, B
Voltage Rating18 to 30 VAC
Features & Benefits
- Easy menu driven programming
- Intuitive wake, leave, return, sleep programming icons
- Blue backlight
- Glow in the dark light button
- Easy access battery compartment
- Electric or gas configurable
- Separate B and O terminals
- Separate heating and cooling swing (cycle rate) adjustments including two-stage adjustments
- Filter change indicator (selectable on or off)
- Room temperature calibration adjustments
- 5 min compressor delay protection (selectable on or off)
- Simple private label badge system
- Easy wire color-coded terminal blocks
- Universal sub-base
- Battery or 24 V power
- 1 A per terminal/1.5 A maximum all terminals combined load rating
- 18 - 30 VAC, NEC class II, 50/60 Hz for hardwire (common wire)
- Battery power from 2 AA alkaline energizer batteries
- 700 platform
