cUPC Certified

• Field testable as required by ASSE 1052 Satin nickel-plated body maintains attractive finish Multiple vent holes ensure proper draining and reduce problems associated with insect nesting Patented PRIER® "triple seal" positive shut-off system offers triple redundancy to assure shut-off High-flow rate, 16 gpm at 25 psi differential Same key operates box lock and hydrant Designed to last the life of the plumbing system Heavy pattern cast brass hydrant for use with or without brass box or aluminum box Heavy-duty brass piping, significantly stronger than copper, with threaded and sealed joints Simple, solderless design and solid non-ferrous operating rod for long wear life Design enables valve to be easily secured to any type of inner wall, utilizing the provided clamping ring Integral 3/8-16 mounting lugs on box provide easy and secure installation Round box (RB1) installs through 6 in hole or 6 in SCH 40 PVC sleeve Patented PRIER® quick opening and modulating design requires less force and fewer turns to operate Gasket prevents water and air intrusion into the building

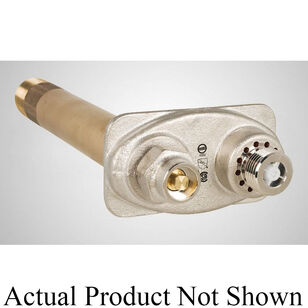

PRIER® C-634 provides a year round source of water to areas that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. To assure freeze protection, the hydrant will drain even with the hose attached and under pressure. The integral vacuum breaker/backflow preventer provides protection against cross-connection with the potable water system, utilizing 2 check valves to prevent back pressure and a vacuum breaker to vent in the case of siphonage. This commercial wall hydrant is key operated, code approved and flows up to 16 gpm. A removable operating key is provided to prevent unauthorized usage of the hydrant. No special installation tools are required.
