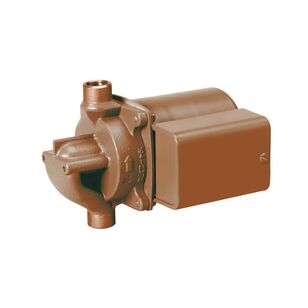

Taco Comfort Solutions® 003-BC4-IFC Cartridge Circulator, 6 gpm, 115 V, 0.45 A, 60 Hz, 125 psi Max Pressure, Bronze
Taco Comfort Solutions® 003-BC4-IFC Cartridge Circulator, 6 gpm, 115 V, 0.45 A, 60 Hz, 125 psi Max Pressure, Bronze
Taco Comfort Solutions® Cartridge Circulator, Model: 003-IFC, 6 gpm Flow Rate, 4-1/2 ft Maximum Head, 115 V, 0.45 A, 60 Hz, 125 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/40 hp, 3/4 in Connection, C Connection, 1 ph, Panel Mounting, 220 deg F, Bronze, 6 in L x 3-5/16 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$664.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Amperage Rating0.45
Connection Size3/4
Connection TypeC
Dimensions6 " L x 3-5/16 " W
Flow Rate6
Frequency Rating60
HP Rating1/40
MaterialBronze
Maximum Head4-1/2
Maximum Pressure125
Model003-IFC
Motor Speed Rating3250
Mounting TypePanel
Phase1
Temperature Rating220
Voltage Rating115
Additional Information
cULus Listed|ANSI/NSF 61/372|Low Lead Compliant
Features & Benefits
- Integral flow check (IFC) Patent # 5,664,939 prevents gravity flow, eliminates separate inline flow check, reduces installed cost, improves system performance, easy to service Unique replaceable cartridge field serviceable Unmatched reliability maintenance-free Quiet, efficient operation Self-lubricating, no mechanical seal Wide range of applications
Documents
Marketing Information
The compact Taco 003-IFC® with an integral flow check is designed for circulating hot and chilled fresh water in open and closed loop applications. With its patented location at the impeller inlet, the IFC eliminates the added installation costs of a separate inline flow check, simplifies piping and improves system performance. The unique, replaceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. Its self-lubricating, maintenance-free design provides quiet, efficient operation and unmatched reliability.
Taco Comfort Solutions® 003-BC4-IFC Cartridge Circulator, 6 gpm, 115 V, 0.45 A, 60 Hz, 125 psi Max Pressure, Bronze
BrandTaco Comfort Solutions®
MFG #003-BC4-IFC
