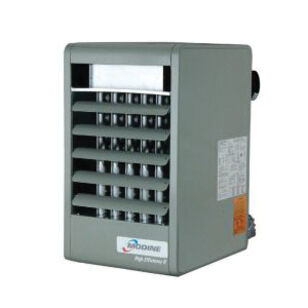

MODINE PDP Series PDP300AE0185 Unit Heater, 115 V, 240000 Btu/hr, 1 ph, Liquid Propane Gas, Natural Gas Fuel
MODINE PDP Series PDP300AE0185 Unit Heater, 115 V, 240000 Btu/hr, 1 ph, Liquid Propane Gas, Natural Gas Fuel
MODINE Unit Heater, PDP Series, 240000 Btu/hr, 115 V, 1123 fpm Flow Rate, 4460 cfm, 1/2 hp, 1 ph, 60 Hz, NPT Connection, 1/2 in Connection, Liquid Propane Gas, Natural Gas Fuel, 1075 rpm Rotational Speed, Steel, Aluminized/Baked-On Polyester Powder-Coated, 40-1/4 in H x 28-5/8 in L x 25 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,826.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandMODINE
ApplicationFor commercial use
BTU Rating240000
CFM Rating4460
Connection Size1/2
Connection TypeNPT
Dimensions40-1/4 " H x 28-5/8 " L x 25 " D
FinishAluminized/Baked-On Polyester Powder-Coated
Flow Rate1123
Frequency Rating60
Fuel TypeLiquid Propane Gas, Natural Gas
HP Rating1/2
IndustryHVAC
MaterialSteel
Phase1
Rotational Speed1075
SeriesPDP Series
Voltage Rating115
Additional Information
ANSI Z83.8 Certified|CSA Certified|ETL Listed|UL Listed
Features & Benefits
- 80% thermal efficiency, maximizing seasonal efficiency through the use of a collector box and the power exhauster A power exhaust that can be rotated 180 deg, the unit can be vented vertically or horizontally A 100% shut-off, intermittent pilot-ignition system with continuous retry, at no extra charge, this ignition system allows for all PDP/BDP units to be field-converted to propane, if desired A safety pressure-switch to assure safe venting conditions Designed to utilize the smallest-diameter vent pipe possible Wing screws so that the bottom pan can be dropped without a screwdriver or nut driver A levels hanging mechanism for easy field adjustments after adding accessories that may change the unit's centre of gravity Aluminized steel heat exchanger/burner A automatic reset vent pressure switch is supplied on all power vented unit heaters to prevent operation of the main burner in the event there is restricted venting of flue products All power vented unit heaters are supplied with a round vent pipe connection, power exhauster may be rotated 180 deg to allow for various venting directions The PDP (propeller) high efficiency II gas-fired unit heaters are a generation of products that are inexpensive to install, easy-to-use and offer excellent in-service economy
