#1, #2 Heating Oil, B5 BioHeat® Fuel, 8 psi Maximum Inlet Pressure

• Reduces air in the system by up to 95% Reduces running vacuum Significantly reduces potential leak hazard Conditions oil for cleaner combustion Reduces lockouts, flameouts and sputters Extends filter element life Temperature range of 20 to 105 deg F Not for use with E-diesel or any fuel containing ethanol (alcohol)

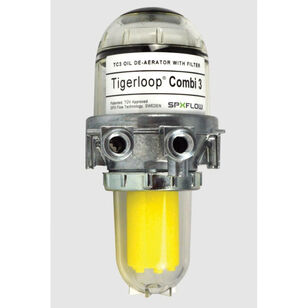

The Tigerloop® Combi 3 combination oil deaerator/filter combines the advantages of oil deaeration with the added benefit of an integrated 50 to 70 um sintered plastic oil filter further simplifying installation. Compatible with standard heating fuels and Biodiesel up to 5% (B5). Includes integrated shut-off valve. The Tigerloop® oil De-aerator improves the efficiency and extends the life of your oil heating systems. The Tigerloop® combines the benefits of a single pipe system with a two-pipe system. With a Tigerloop® installed, you need only to transport oil at the nozzle firing rate (i.e. 1 gph). This allows you to use one small line from the tank to the Tigerloop®, whereas with a two-pipe installation you have to provision two-large diameter lines that will handle oil traffic at approximately 20 gph in both directions.
