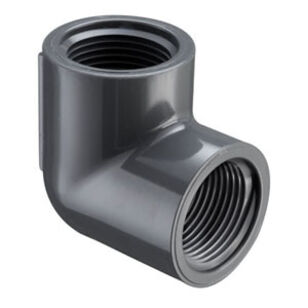

PVCPR 808-005 1/2 FXF S80 PVC L90
PVCPR 808-005 1/2 FXF S80 PVC L90
Spears® 90 deg Elbow, Series: 808 Series, 90 deg Elbow Fitting, 1/2 in Connection Size 1, FNPT Connection Type 1, 1/2 in Connection Size 2, FNPT Connection Type 2, FNPT|FNPT Connection, PVC, Molded PVC Material Construction, Gray, SCH 80 Schedule Rating, 150 psi, 1-3/16 in OD, 140 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$16.82 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandKeller Approved
ApplicationFor potable water service
ColorGray
Connection Size 11/2"
Connection Size 21/2"
Connection TypeFNPT|FNPT
Connection Type 1FNPT
Connection Type 2FNPT
Dimensions1-3/16" OD
Fitting Type90 deg Elbow
IndustryPlumbing
MaterialPVC
Material ConstructionMolded PVC
Pressure Rating150 psi
Schedule RatingSCH 80
Series808 Series
Temperature Rating140 deg F
WarrantyLimited Lifetime
Features & Benefits
- Unlike metal, PVC fittings never rust, scale or pit and will provide many years of maintenance-free service and extended system life
- PVC thermoplastic can handle fluids at service temperatures up to 140 deg F, allowing a wide range of process applications, including corrosive fluids
- Substantially lower material costs than steel alloys or lined steel, combined with lighter weight and ease of installation, can reduce installation costs by as much as 60% over conventional metal systems
- Smooth interior walls result in lower pressure loss and higher volume than conventional metal systems
- Extra large, hard-to-find and custom configurations are fabricated from NSF certified pipe
- Fittings are engineered and tested to provide full pressure handling capabilities according to Spears® specifications
Documents
Marketing Information
Spears® SCH 80 PVC product designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure obtaining the very best PVC fittings available.
PVCPR 808-005 1/2 FXF S80 PVC L90
BrandKeller Approved
MFG #808-005
Keller #44136
