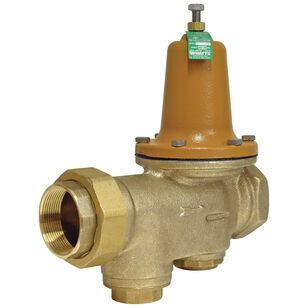

WATTS® LF25AUB-Z3 2 Standard Pressure Reducing Valve With Stainless Steel Strainer and Thermal Expansion Bypass
WATTS® LF25AUB-Z3 2 Standard Pressure Reducing Valve With Stainless Steel Strainer and Thermal Expansion Bypass
WATTS® Standard Pressure Reducing Valve With Stainless Steel Strainer and Thermal Expansion Bypass, LF25AUB-Z3 Series, 2 x 2 in Nominal, FNPT Union x FNPT Connection, 300 psi, Material Standard: ANSI A112.26.2, ANSI B356, Copper Body, Stainless Steel Seat, EPDM Disc, Stainless Steel Trim, EPDM Softgoods, Lead-Free, 33 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,493.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper
Connection TypeFNPT Union x FNPT
Disc MaterialEPDM
IndustryPlumbing
Lead-FreeYes
Material StandardANSI A112.26.2, ANSI B356
Nominal Size2 x 2
Pressure Rating300
Seat MaterialStainless Steel
SeriesLF25AUB-Z3 Series
Softgoods MaterialEPDM
Temperature Rating33 to 180
Trim MaterialStainless Steel
Additional Information
Buy American Act Compliant|CSA Certified|UPC Certified|NSF Certified|ASSE 1003|MIL-V-18146B Type I
Features & Benefits
- Integral stainless steel strainer removable for cleaning Replaceable seat module Sealed spring cage with stainless steel cage screws NPT threaded female union inlet by FNPT outlet
Marketing Information
This 2 in lead-free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 deg F (0.5 to 82 deg C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS® LF25AUB-Z3 2 Standard Pressure Reducing Valve With Stainless Steel Strainer and Thermal Expansion Bypass
BrandWATTS®
MFG #0009465
Keller #441741
My Part ##
Last Ordered#
$3,493.00 / ea
