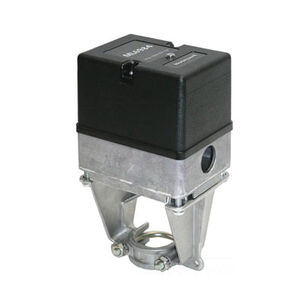

Honeywell ML6984A4000/U Linear Valve Actuator, 24 V, 1/2 to 1 in Stroke
Honeywell ML6984A4000/U Linear Valve Actuator, 24 V, 1/2 to 1 in Stroke
Honeywell Linear Valve Actuator, 24 V, 50/60 Hz, 1/2 to 1 in Stroke, IP54, NEMA 3R Enclosure, 160 in-lb Output Torque, 2-Position, Floating Signal, For Use With: V5011/13, VGF21 and VGF22 Gas Valves, Aluminum Body, Aluminum Trim, 32 to 130 deg F, 7.04 in H x 4.02 in W x 3.2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$563.34Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Body MaterialAluminum
Dimensions7.04 " H x 4.02 " W x 3.2 " D
Enclosure TypeIP54, NEMA 3R
Frequency Rating50/60
IndustryHVAC
Output Torque160
SeriesML6984 Series
Signal Type2-Position, Floating
Stroke1/2 to 1
Suitable For Use WithV5011/13, VGF21 and VGF22 Gas Valves
Temperature Rating32 to 130
Trim MaterialAluminum
Voltage Rating24
Features & Benefits
- The actuator has a self-adjusting stroke mechanism that calibrates the actuator to the stroke of the valve once installed, from 13 to 25 mm ML6984 is used with two-position or 3-P floating control and ML7984 uses a 0 to 10 VDC analogue control signal for positioning, rated force is 700 N
Marketing Information
ML6984 / ML7984 Series linear valve actuators are used with control valves in sizes ranging from DN15 to DN80 connection size, with 20 mm stroke. They are used in a variety of applications where control accuracy is critical.
Honeywell ML6984A4000/U Linear Valve Actuator, 24 V, 1/2 to 1 in Stroke
BrandHoneywell
MFG #ML6984A4000/U
Keller #442747
My Part ##
Last Ordered#
$563.34Â /Â ea
