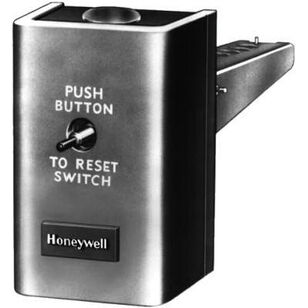

Honeywell L4029E1029/U Limit Control, SPST - NC Switch, Gray
Honeywell L4029E1029/U Limit Control, SPST - NC Switch, Gray
Honeywell Limit Control, 2 A at 30 VAC, 10 A at 120 VAC, 5 A at 240 VAC Full Load, 60 A at 120 VAC, 30 A at 240 VAC Locked Rotor Amperage Rating, SPST - NC Switch Type, 190 deg F Switch, 350 deg F Element, 200 deg F High Limit Stop Temperature Rating, 3 in Insertion Length, 2-5/16 in W x 3-3/4 in H x 2 in D Dimensions, Smooth, Gray
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$483.74Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Amperage Rating2 A at 30 VAC, 10 A at 120 VAC, 5 A at 240 VAC Full Load, 60 A at 120 VAC, 30 A at 240 VAC Locked Rotor
ColorGray
Dimensions2-5/16 " W x 3-3/4 " H x 2 " D
FinishSmooth
IndustryHVAC
Insertion Length3
Switch TypeSPST - NC
Temperature Rating190 deg F Switch, 350 deg F Element, 200 deg F High Limit Stop
Additional Information
UL Listed, File Number MP466, Volume 8, Guide Number MBPR2, Canadian Standards Association Certified, File Number LR95329-5
Features & Benefits
- L4029E reset limit control opens a line or low voltage circuit if the air temperature reaches a critical level Acts as a fire thermostat in the ducts of AC and ventilating system Shuts off the fan when air temperature is indicative of fire Internal snap-acting switch actuated by a bimetal strip inserted directly into the air stream responds rapidly to temperature changes Requires manual reset 3 in L element insertion 0.25 A at 0.25 - 12 VDC pilot-duty rating Normally closed SPST switch opens on temperature rise to the set point, switch must be manually reset to operate switching action Wiring knockouts: bottom - for 1/2 in conduit
Honeywell L4029E1029/U Limit Control, SPST - NC Switch, Gray
BrandHoneywell
MFG #L4029E1029/U
Keller #447107
