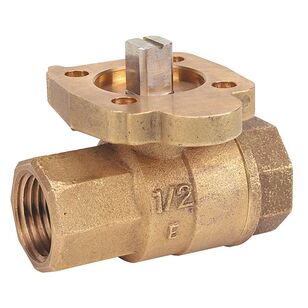

NIBCO TM5857066-2IN BRZ BALL VLV **NOT FOR POTABLE USE
NIBCO TM5857066-2IN BRZ BALL VLV **NOT FOR POTABLE USE
NIBCO®, 2 in Nominal, Connection Type: FIPT, Full Port, 600 psi CWP, 150 psi SWP, Quarter-Turn ISO Actuator Mounting Pad Operator, Bronze Body, Stainless Steel Stem, Reinforced PTFE Seal, Stainless Steel Trim, 5 in L x 4 in W x 5.25 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$997.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialBronze
Connection TypeFIPT
Dimensions5 " L x 4 " W x 5.25 " H
IndustryPlumbing
Nominal Size2
Operator TypeQuarter-Turn ISO Actuator Mounting Pad
Port TypeFull
Pressure Rating600 psi CWP, 150 psi SWP
Seal MaterialReinforced PTFE
Stem MaterialStainless Steel
Trim MaterialStainless Steel
Shipping Dimensions (L x W x H)10.25" x 7.94" x 4.94"
Features & Benefits
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure Maximum temperature rating 400 degrees F Full port Stainless steel ball and stem Blowout-proof stem Vented ball Standard lever handle, optional NIB-SEAL pecent Threaded end connections with mounting pad Dezincification resistant Use in U.S. drinking water applications is prohibited after January 3, 2014 Conforms to MSS SP-110 Actuator mount per ISO 5211
Marketing Information
The NIBCO pecent bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas, natural gas and aggressive water applications. The valve features threaded ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO pecent ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pecent ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
NIBCO TM5857066-2IN BRZ BALL VLV **NOT FOR POTABLE USE
BrandNIBCO®
MFG #WL95A0D
Keller #447202
